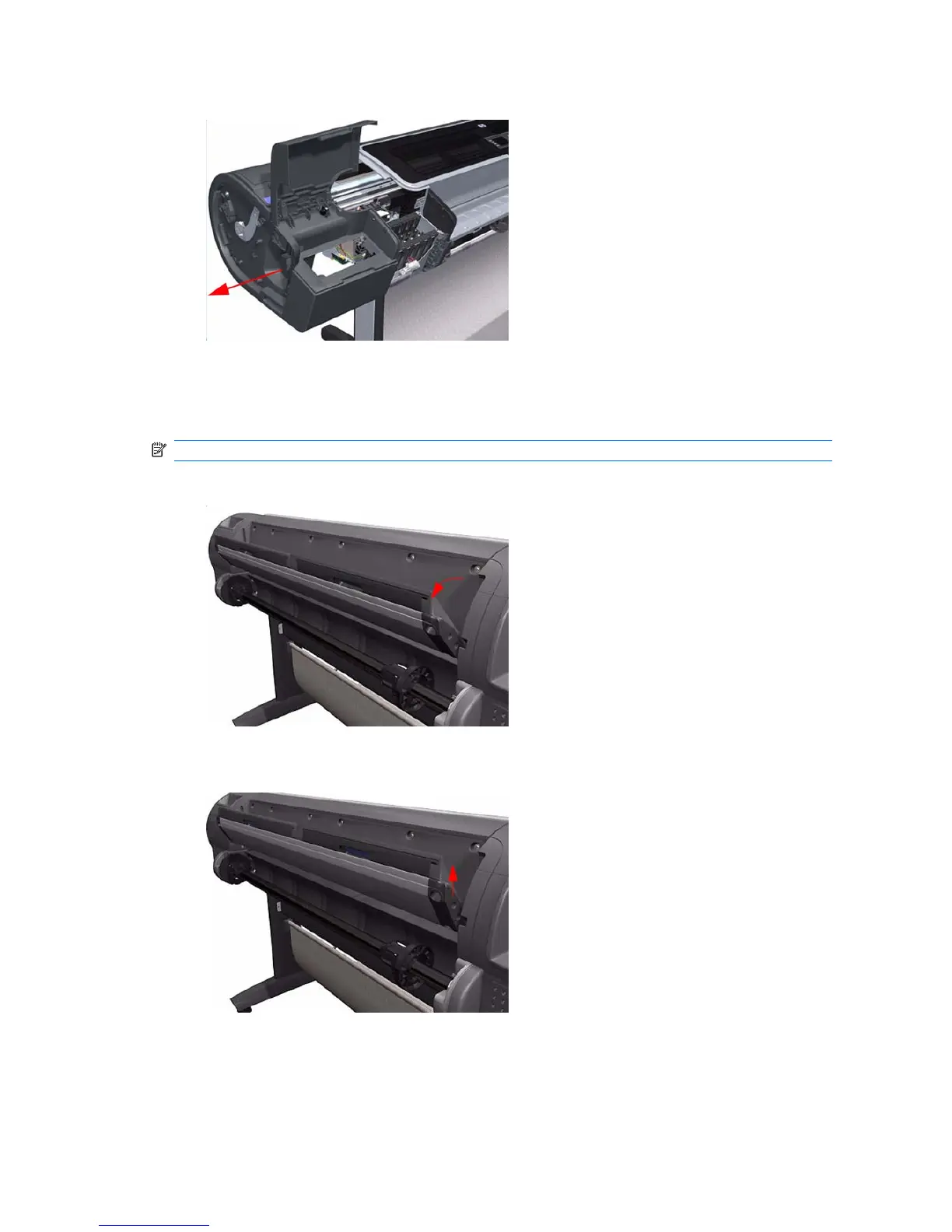

20. Remove the Left Cover from the Printer.
Rear Tray
Removal
NOTE: Switch off the printer and remove the power cable.
1. Open the Rear Tray to approximately 10 degrees less than the fully open position.
2. Lift the Rear Tray vertically enough (approximately 20 mm) to allow the rear attachment lugs to be
out of the locked position.
194 Chapter 6 Removal and Installation ENWW
