3. Remove the Left Cover (refer Left Cover on page 188).
4. Remove the Rear Cover (refer
Rear Cover on page 195).

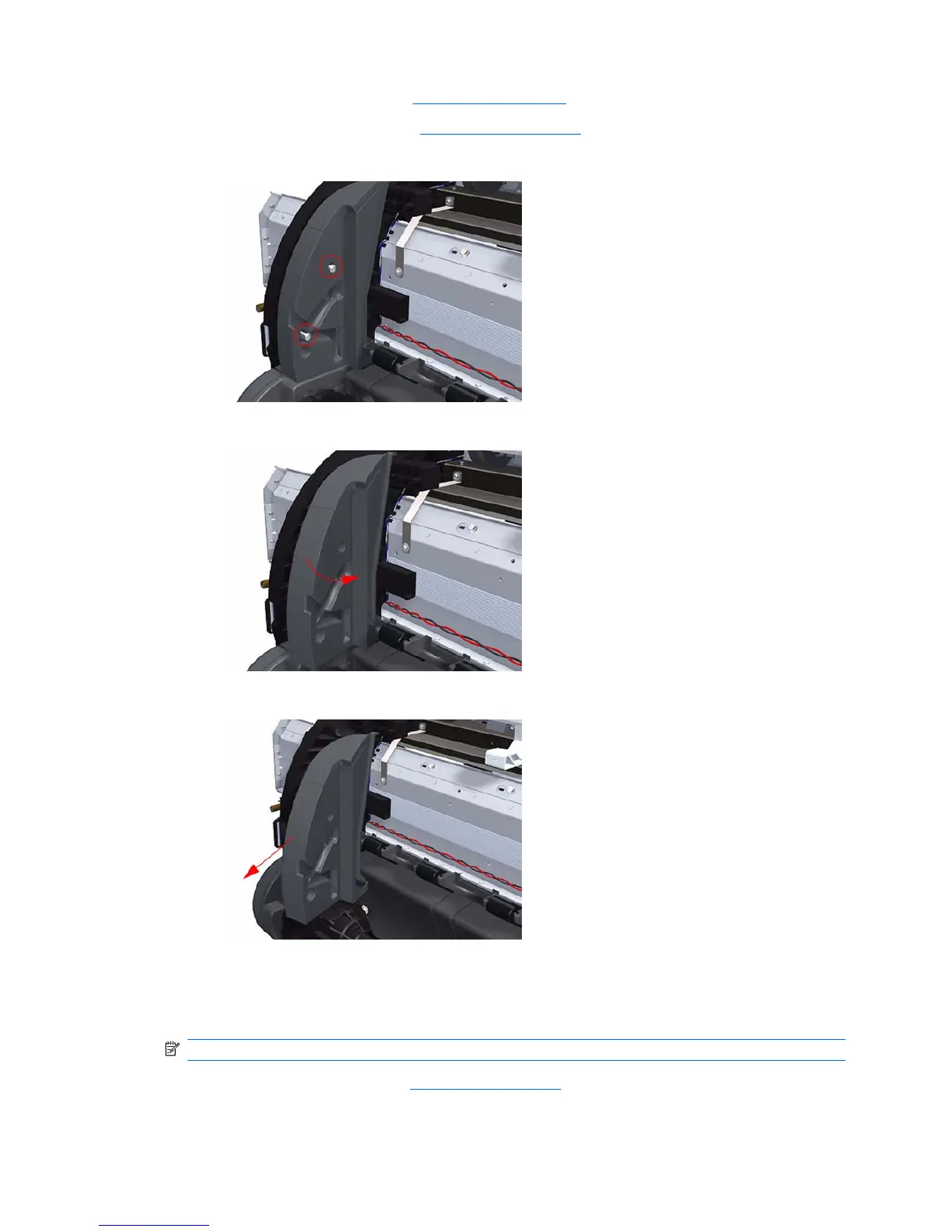

5. Remove two T-15 screws that secure the Right Rear Tray Support to the printer.
6. Rotate the Right Rear Tray Support counterclockwise approximately 30 degrees.
7. Remove the Right Rear Tray Support from the printer.
Left Rear Tray Support
Removal
NOTE: Switch off the printer and remove the power cable.
1. Remove the Rear Tray (refer Rear Tray on page 194).
2. Remove the Right Cover (refer
Right Cover on page 185).
ENWW Left Rear Tray Support 201
