3. Remove the Left Cover (refer Left Cover on page 188).
4. Remove the Rear Cover (refer
Rear Cover on page 195).

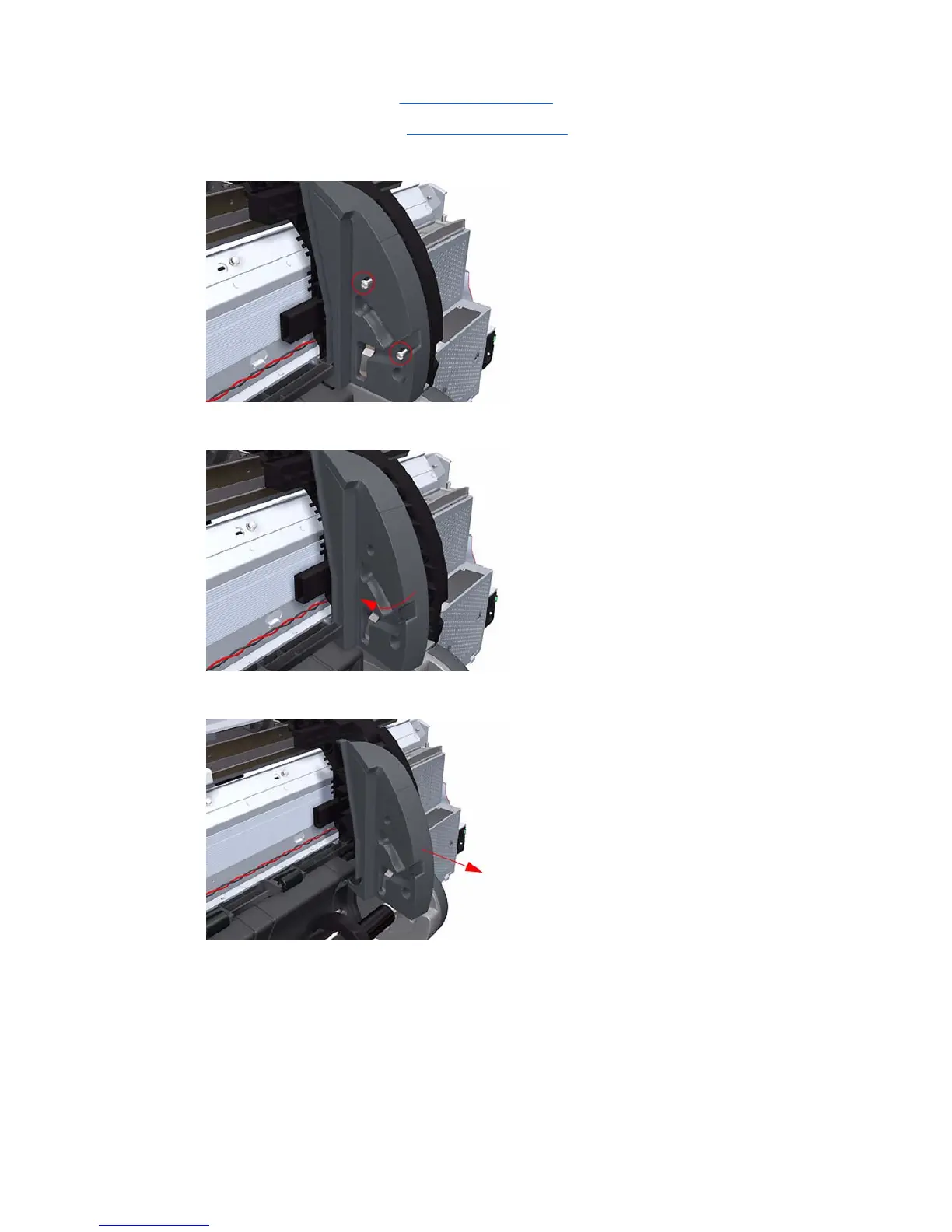

5. Remove two T-15 screws that secure the Left Rear Tray Support to the printer.
6. Rotate the Left Rear Tray Support clockwise approximately 30 degrees.
7. Remove the Left Rear Tray Support from the printer.
202 Chapter 6 Removal and Installation ENWW
