HP DesignJet Z5200 series

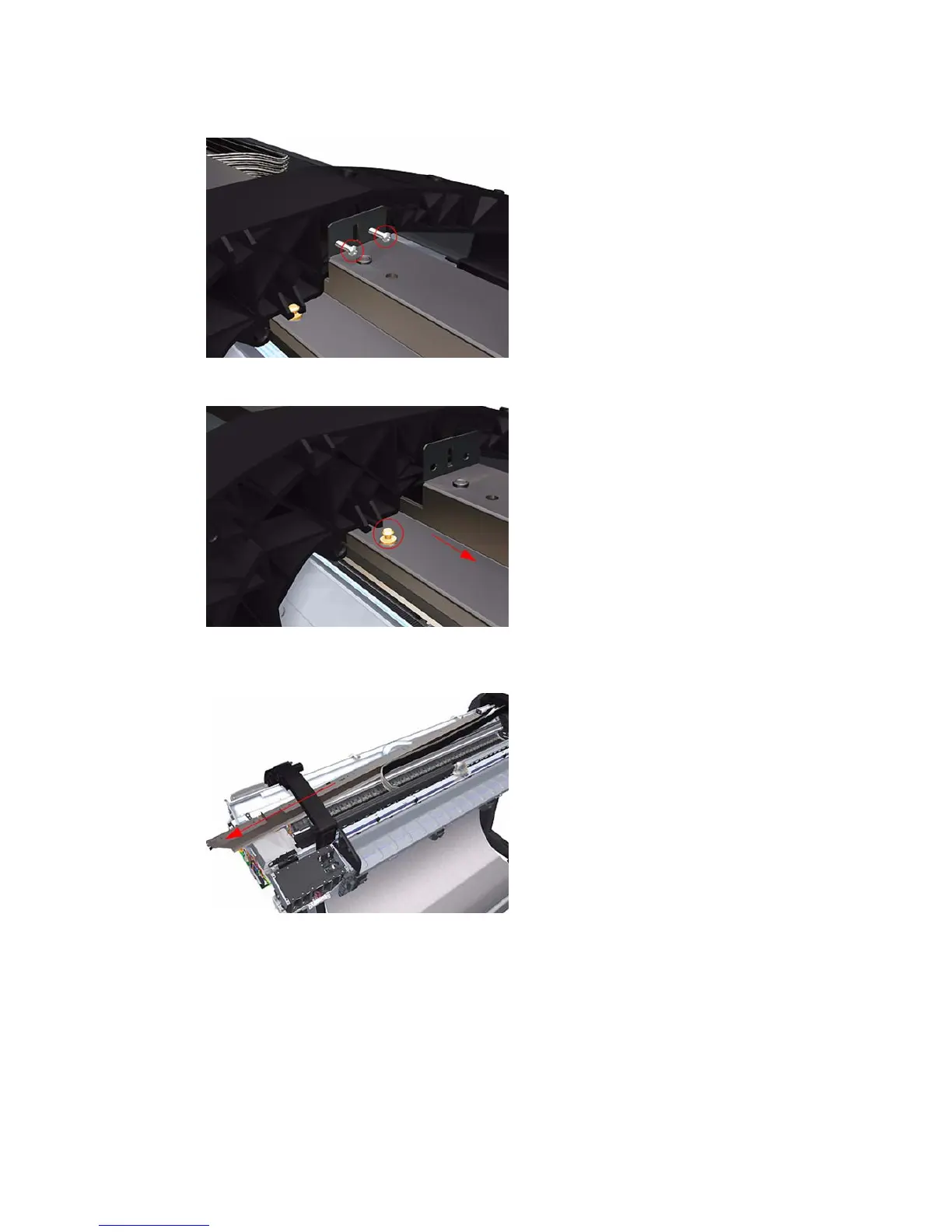

12. Remove two T-15 screws that secure the Ink Supply Tubes Support Rail to the left Top Cover
Support.
13. Slide the rail enough to disengage it from the attachment lug.
14. Carefully slide the Ink Supply Tubes Support Rail to the left until the right end is clear of the right
Top Cover Support.
212 Chapter 6 Removal and Installation ENWW
