Service Station

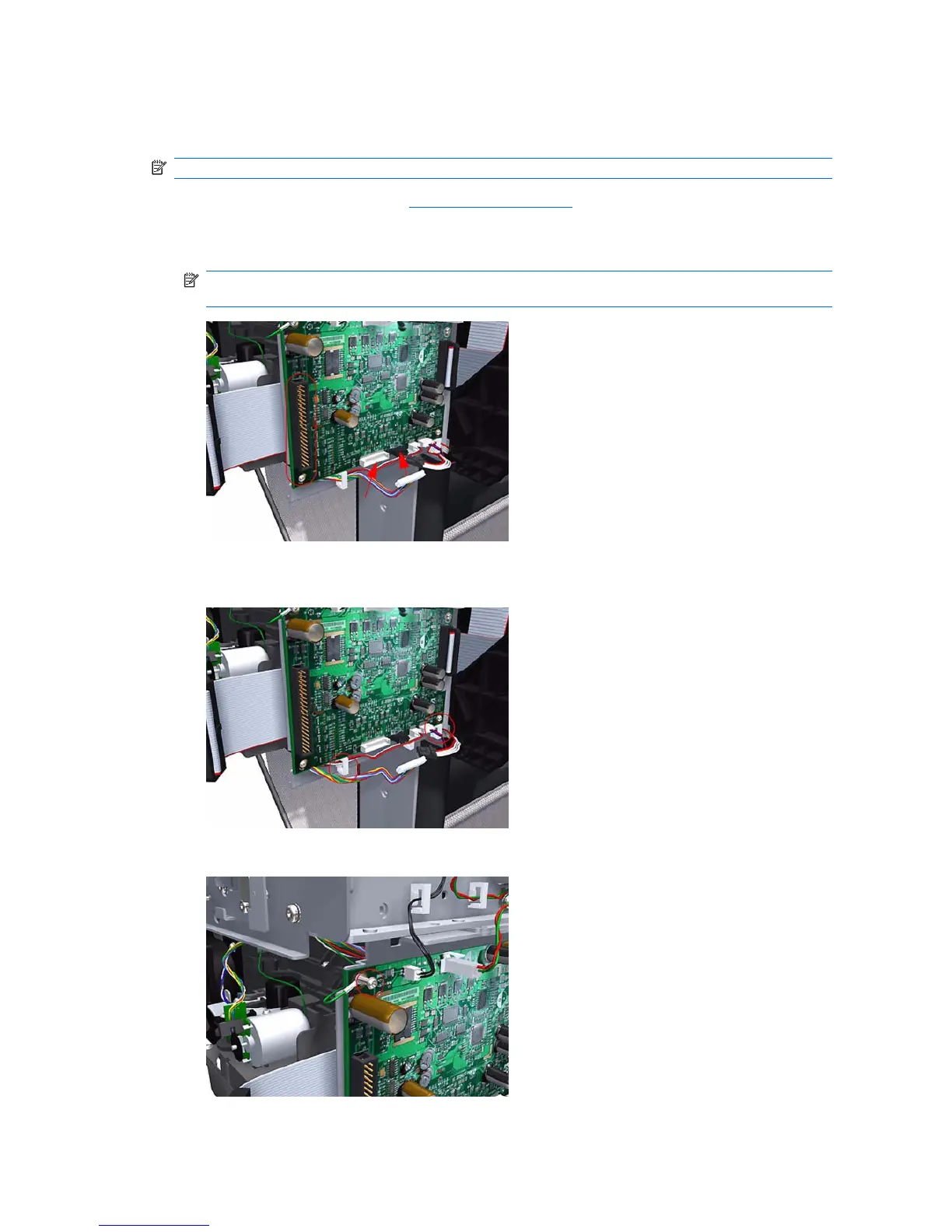

Removal
NOTE: Switch off the printer and remove the power cable.
1. Remove the Right Cover (refer Right Cover on page 185).
2. Disconnect the Ink Supply Station ribbon connector and two lower connectors from the PrintMech
PCA.
NOTE: The Ink Supply Station ribbon connector has to be disconnected so the other cables can
an be unrouted.
3. Unroute the two cables disconnected in step 2 from the two cable clamps below the PrintMech
PCA.
4. Remove the grounding cable attachment screw from the PrintMech PCA.
214 Chapter 6 Removal and Installation ENWW
