HP DesignJet Z5200 series

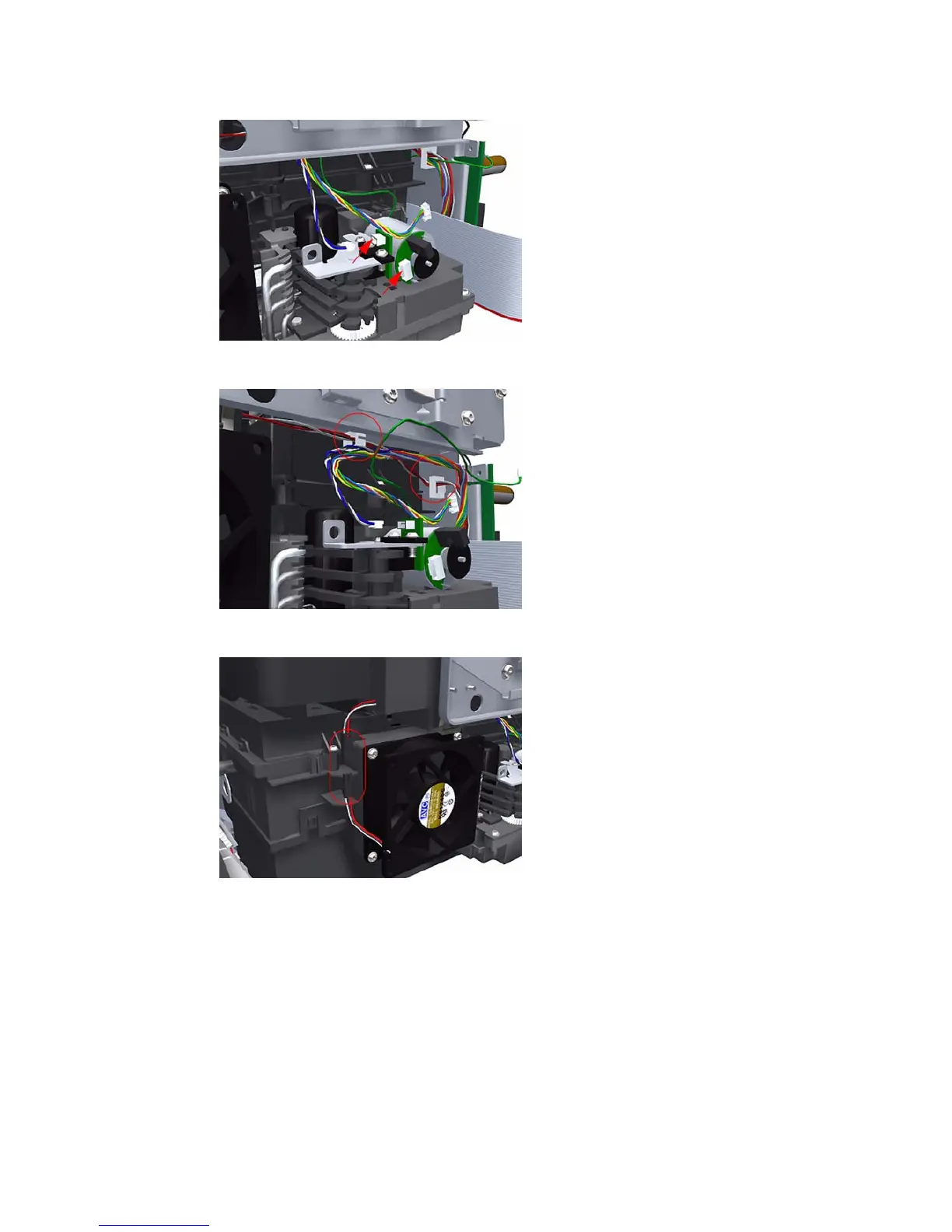

5. Disconnect connector from the Drop Detector Motor and Drop Detector Sensor.
6. Unroute the cables disconnected in steps 4 and 5 from the two cable clamps.
7. Disconnect the Aerosol Fan Assembly inline connector.
ENWW Service Station 215
