NOTE: Switch off the printer and remove the power cable.
1. Remove the Right Cover (refer Right Cover on page 185).
2. Remove the Service Station (refer
Service Station on page 214).

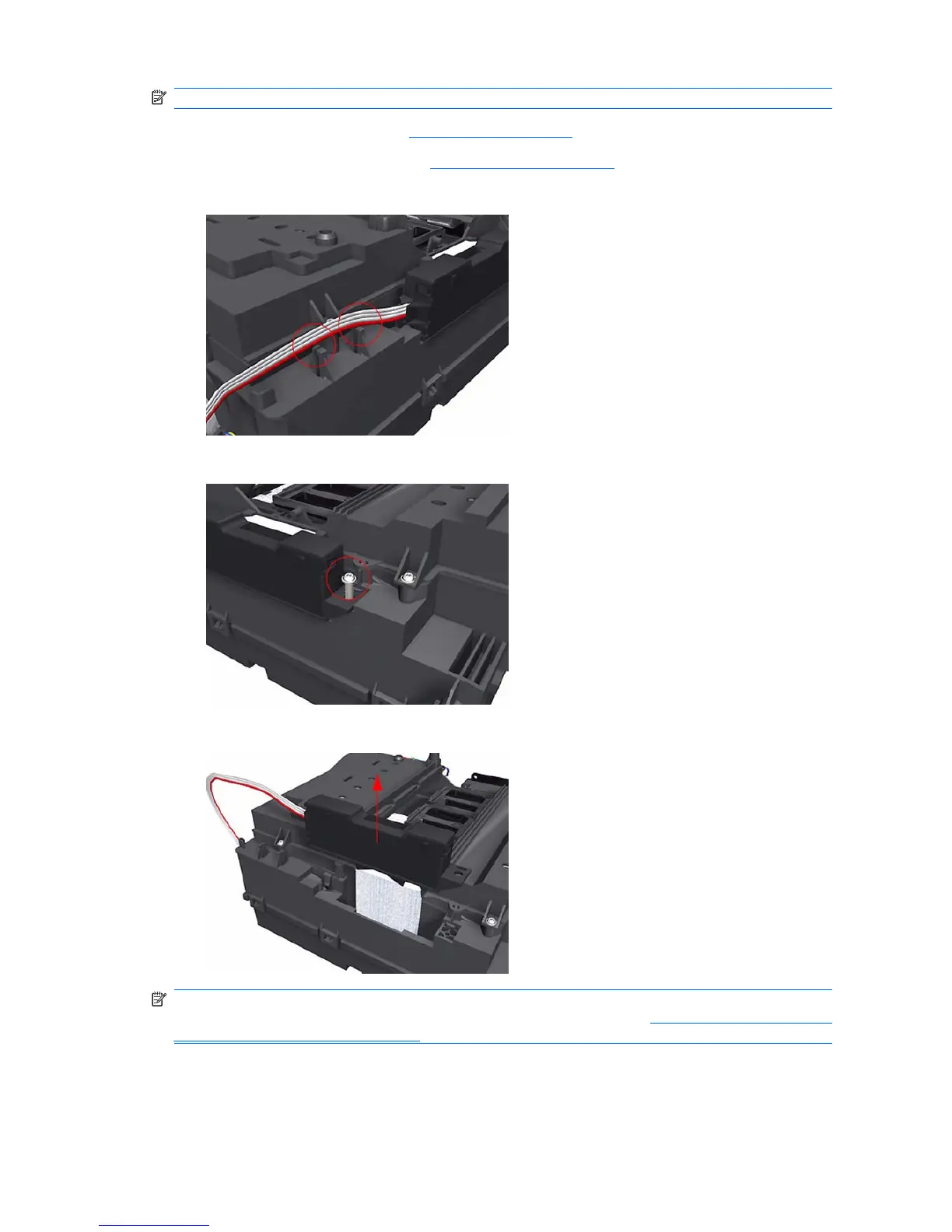

3. Unroute the Drop Detector ribbon cable from the Service Station cable clamps.
4. Remove the T-15 screw that secures the Drop Detector to the Service Station.
5. Lift the Drop Detector off the Service Station.
NOTE: When you finish installing or replacing this component, you must perform the necessary
Service Calibrations. To find which calibrations you must perform, refer to
Service Calibration Guide to
Removal and Installation on page 170.
218 Chapter 6 Removal and Installation ENWW
