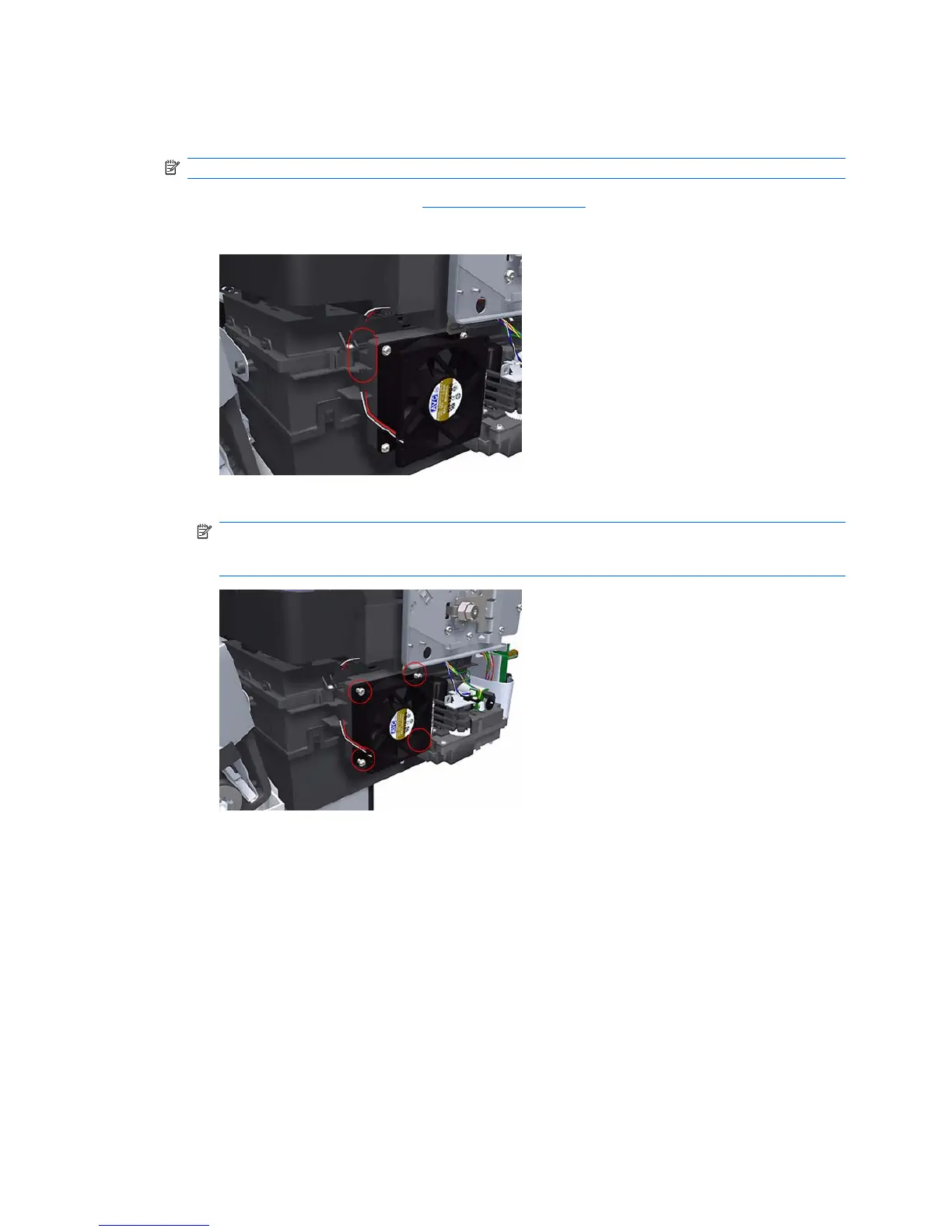

Aerosol Fan Assembly
Removal
NOTE: Switch off the printer and remove the power cable.
1. Remove the Right Cover (refer Right Cover on page 185).
2. Disconnect the Aerosol Fan Assembly inline connector.
3. Remove the four T-15 screws that secure the Aerosol Fan Assembly to the Service Station.
NOTE: The four access holes in the Aerosol Fan Assembly housing are the same size as the
attachment screw diameter so you will need a normal Torx Screwdriver, not a multi-tool, to remove
the screws.
ENWW Aerosol Fan Assembly 219
