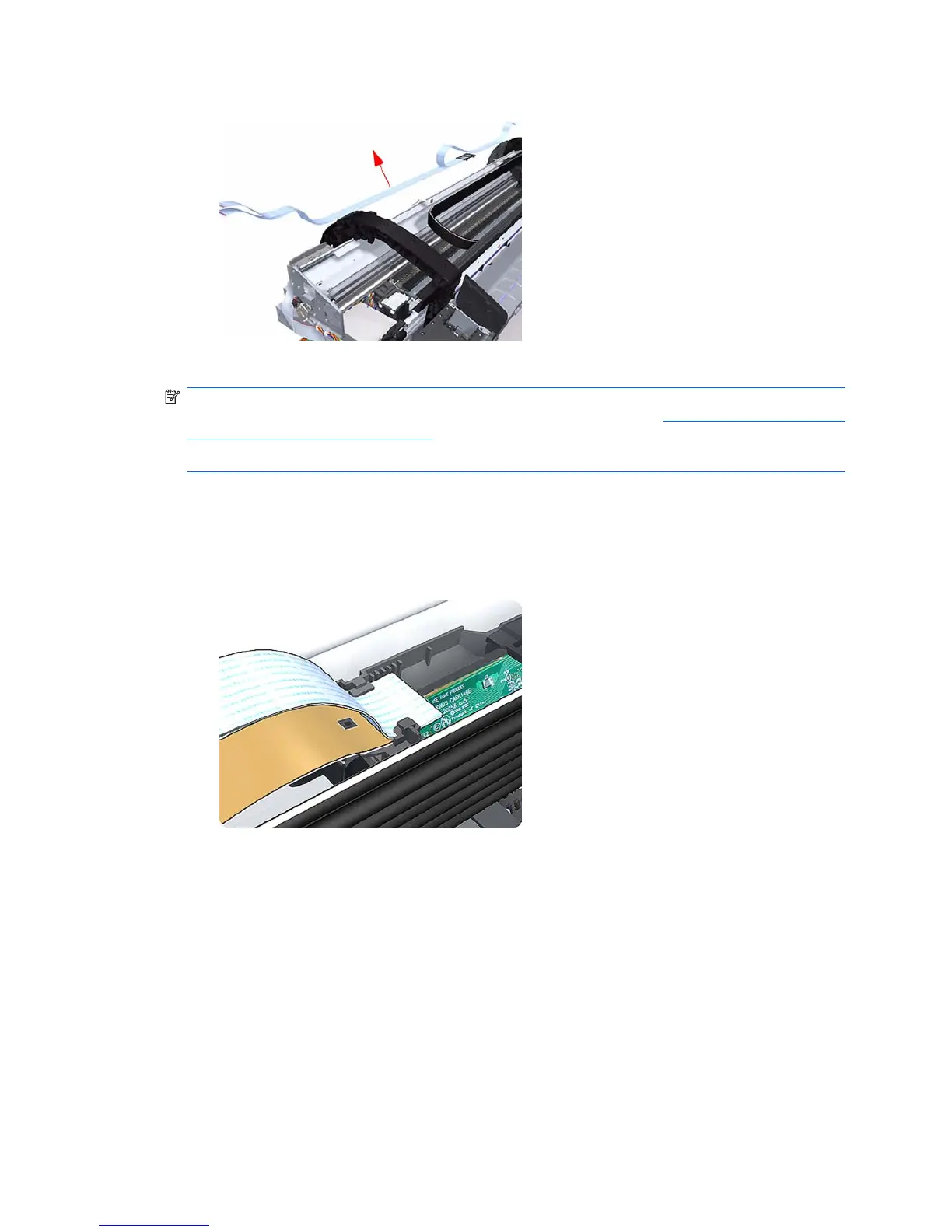

23. Remove the Trailing Cables from the printer.
Installation
NOTE: When you finish installing or replacing this component, you must perform the necessary
Service Calibrations. To find which calibrations you must perform, refer to
Service Calibration Guide to
Removal and Installation on page 170.
NOTE: Make sure you carry out the following actions during the installation of the Trailing Cable.
1. Use an alcohol (from the Lubrication Kit or Tool Kit) dampened cloth to remove all traces of residual
adhesive (remaining from the double sided pads removed from the printer before applying new
pads in the same positions as the original pads.
2. Make sure both ribbon cables of the Trailing Cable are routed below the lower attachment clips of
the Carriage Assembly.
ENWW Trailing Cable 243
