HP DesignJet Z5200 series

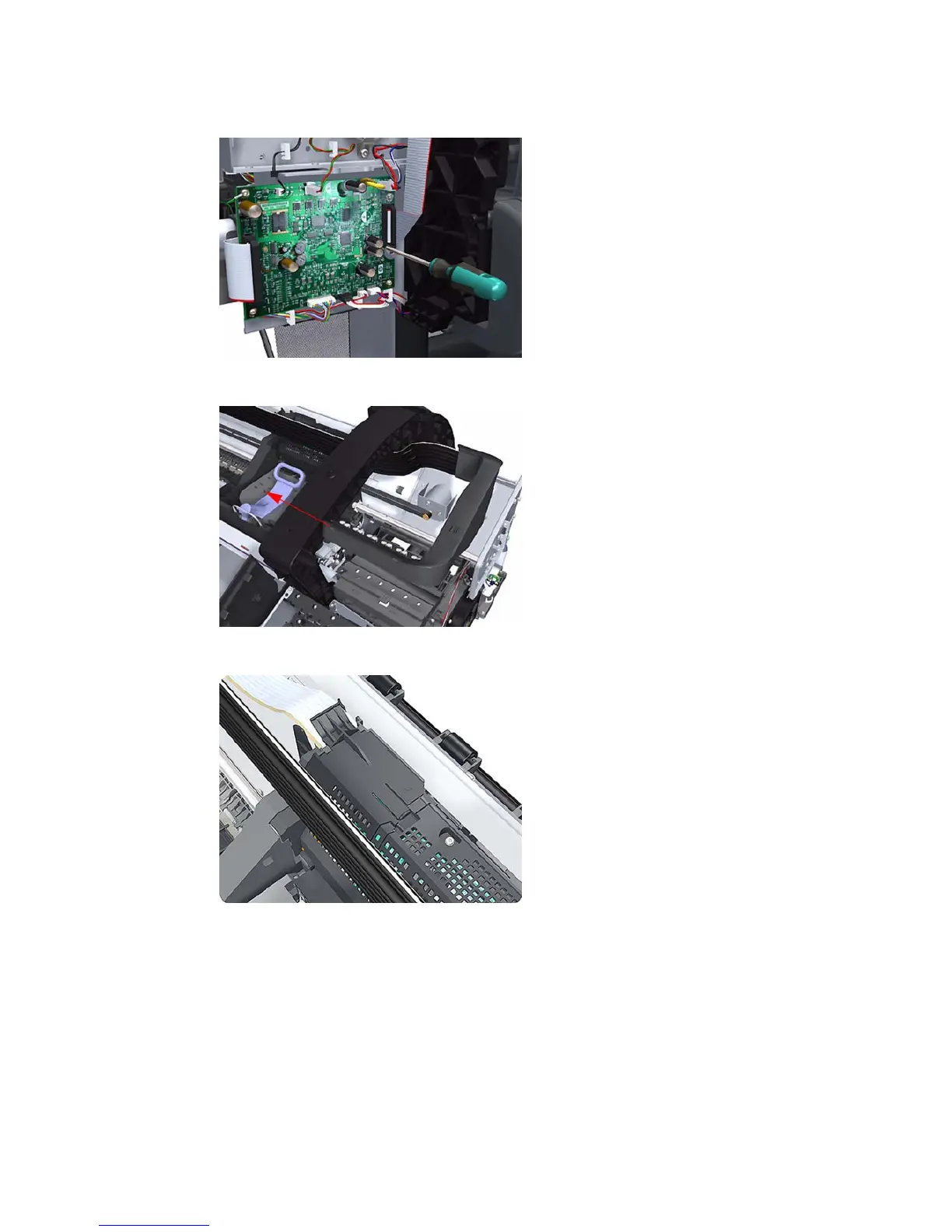

24. Loosen the T-10 uncapping screw sufficiently so you can manually move the Carriage Assembly
in step 26.
25. Push the Carriage Assembly into the print path.
26. Unclip the small cover of the Carriage PCA.
ENWW Carriage Assembly (with or without Trailing Cable) 249
