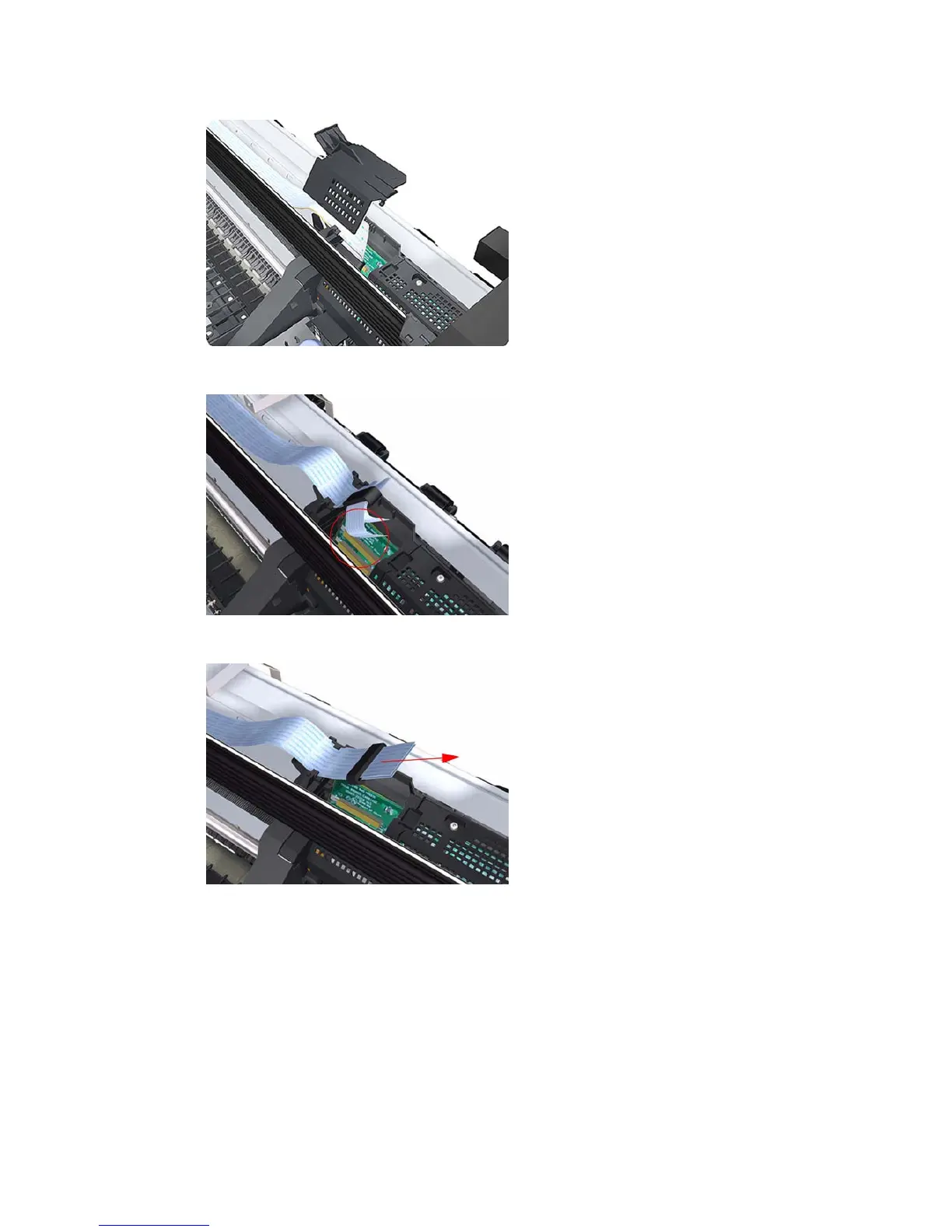

27. Remove the small cover of the Carriage PCA.
28. Disconnect the two ribbon cables of the Trailing Cables from the Carriage PCA.
29. Straighten the two ribbon cables of the Trailing Cables and remove the Ferrite Core.
