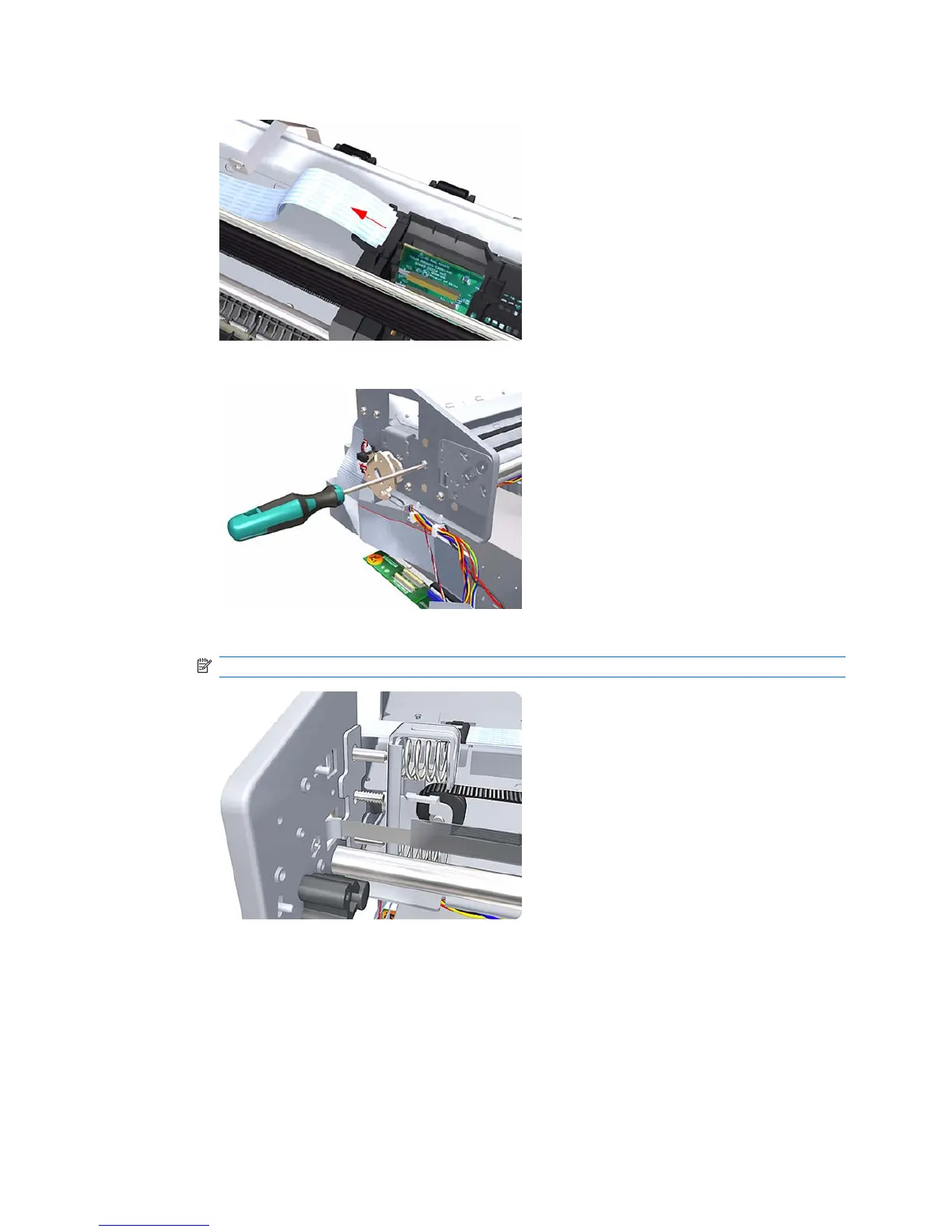

30. Slide the Trailing Cables out of the attachment clips of the Carriage Assembly.
31. Loosen the T-15 screw Belt Tensioner to the printer to remove the tension from the belt.
32. Leave the Belt Tensioner in place with all the tension removed.
NOTE: The belt tensioner has a spacer between the tensioner and the right end plate.
ENWW Carriage Assembly (with or without Trailing Cable) 251
