HP DesignJet Z5200 series

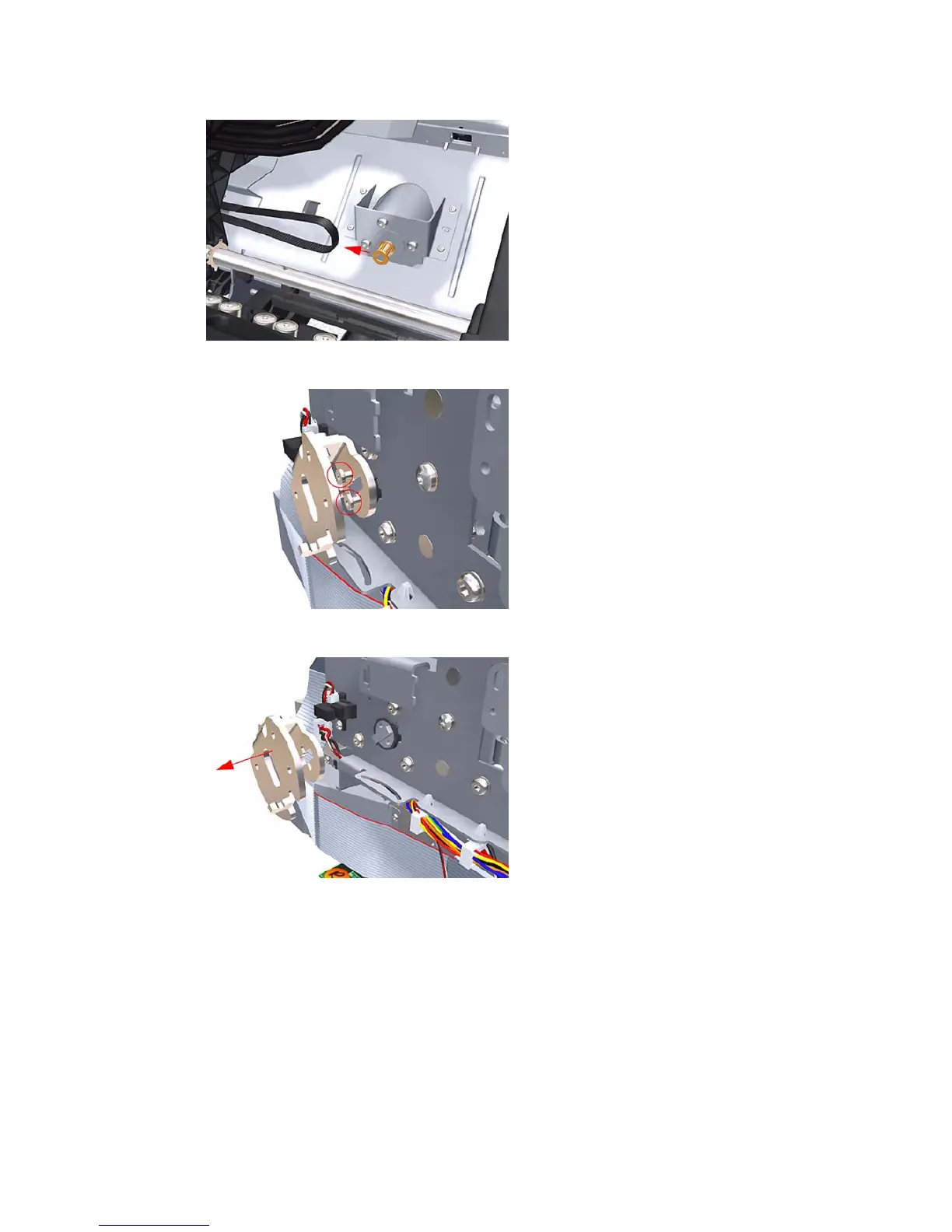

33. Remove the Belt Assembly from the Scan- Axis Motor drive wheel.
34. Remove the two T-15 screw that secure the Media Lever attachment plate.
35. Remove the Media Lever attachment plate.
252 Chapter 6 Removal and Installation ENWW
