HP DesignJet Z5200 series

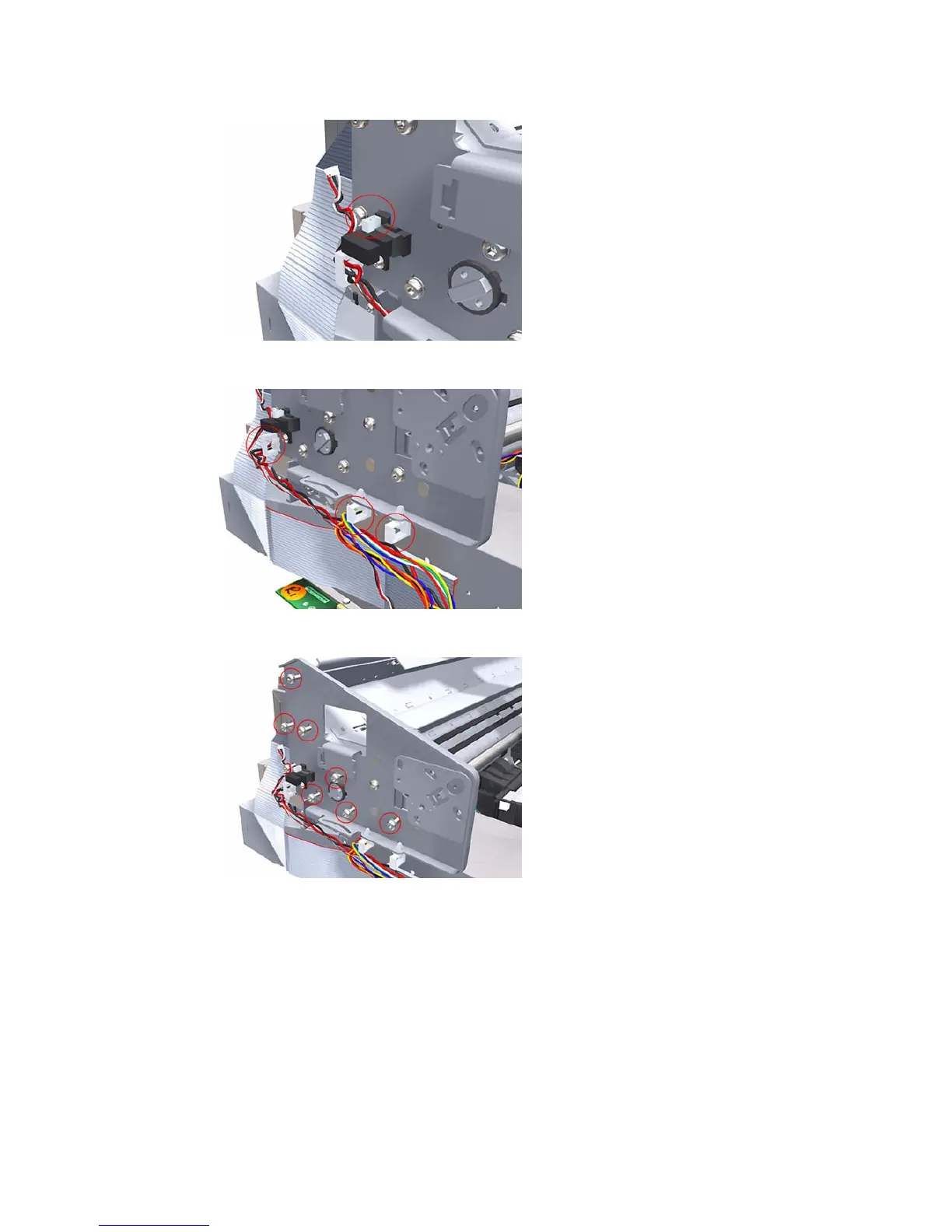

36. Disconnect the Pinchwheel Lifter Sensor.
37. Unroute the cables from the cable clamps on the Scan Side Panel.
38. Remove the seven T-15 screw that secure the Scan Side Panel to the printer.
ENWW Carriage Assembly (with or without Trailing Cable) 253
