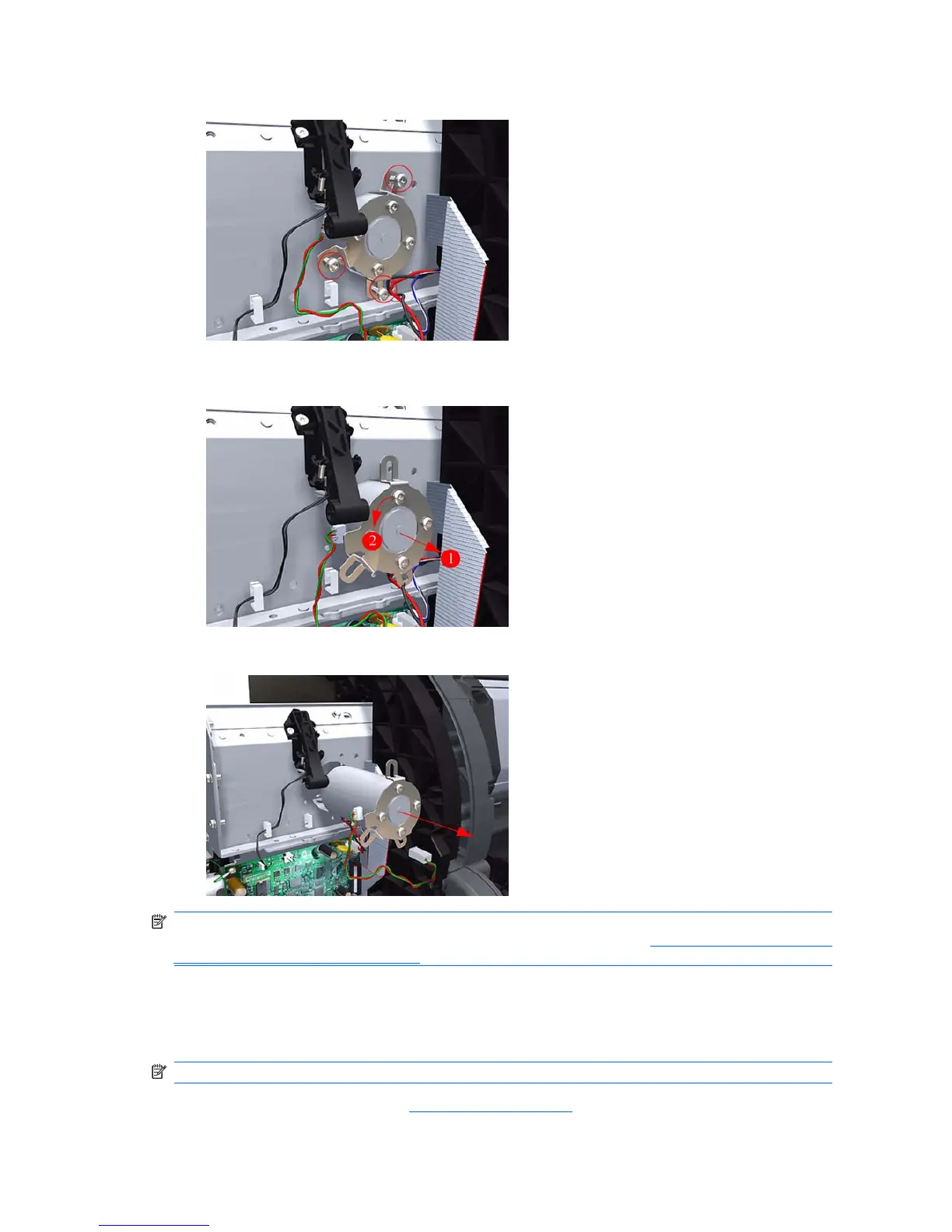

11. Remove three T-15 screws that secure the Scan-Axis Motor to the printer.
12. Carefully pull the Scan-Axis Motor out of the printer (10 mm) until you can rotate it approximately
30 degrees counterclockwise.
13. Remove the Scan-Axis Motor from the printer.
NOTE: When you finish installing or replacing this component, you must perform the necessary
Service Calibrations. To find which calibrations you must perform, refer to
Service Calibration Guide to
Removal and Installation on page 170.
Carriage Rail Oiler
Removal
NOTE: Switch off the printer and remove the power cable.
1. Remove the Right Cover (refer Right Cover on page 185).
260 Chapter 6 Removal and Installation ENWW
