Operations 23
To remove the component:
1. Power down the server if performing a non-hot-plug installation or maintenance procedure ("Power
down the server" on page 21).
2. Extend the server from the rack (on page 21).
3. Use the T-15 Torx screwdriver attached to the rear of the server to loosen the security screw on the hood
latch.
4. Lift up on the hood latch handle, and then remove the access panel.
Install the access panel
1. Place the access panel on top of the server with the hood latch open. Allow the panel to extend past the
rear of the server approximately 1.25 cm (0.5 in).
2. Push down on the hood latch. The access panel slides to a closed position.
3. Use the T-15 Torx screwdriver attached to the rear of the server to tighten the security screw on the hood
latch.
Access the product rear panel

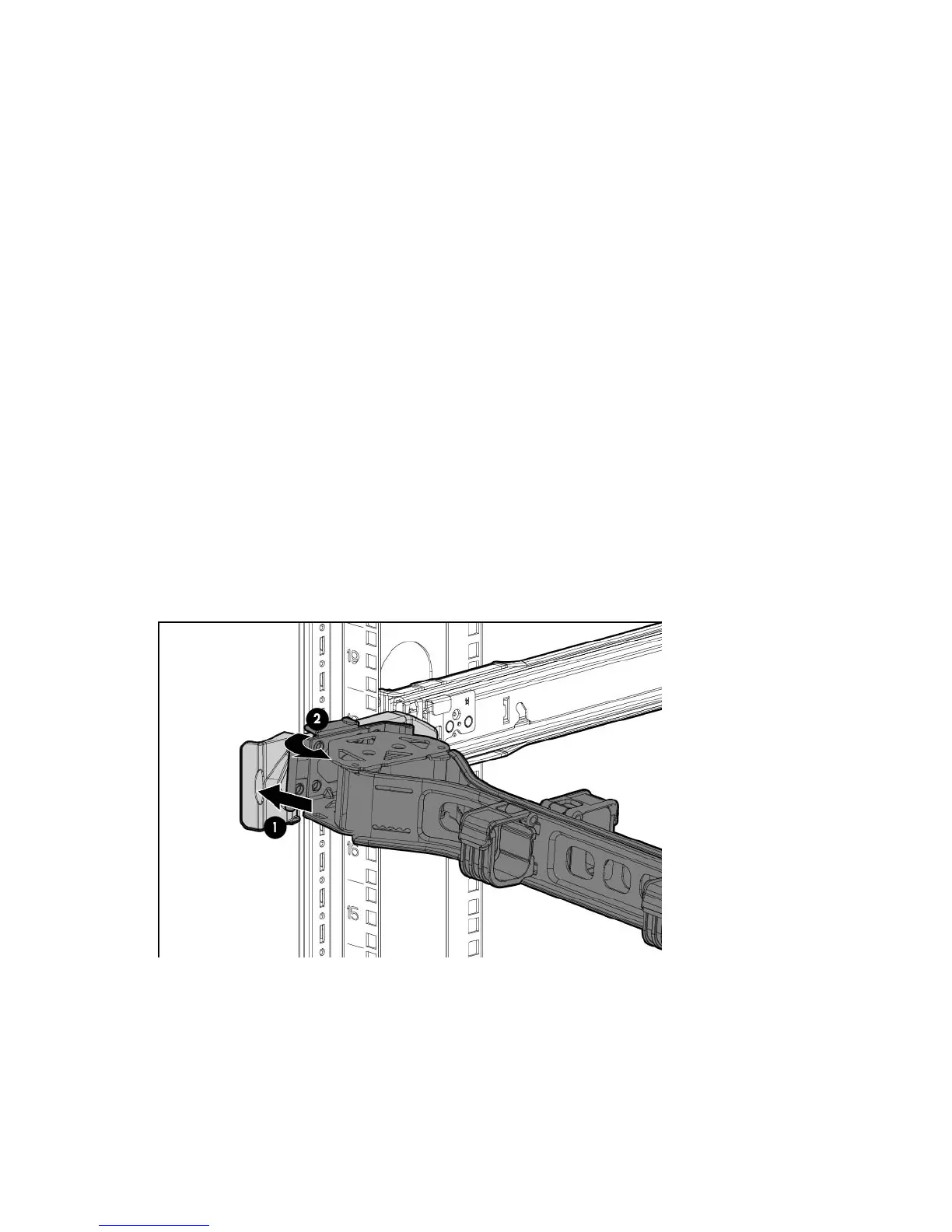

Opening the cable management arm
To access the server rear panel:
1. Release the cable management arm.
Storage Networks
www.storagenetworks.com
Authorized HP Reseller
Spare Parts:
http://www.storagenetworks.com/products/servers/hp/DL380G8/dl380pg8_servers_landing.php

HP DL380P Specifications

General

Product Line	ProLiant
Rack Height	2U
Processor Sockets	2
Memory	Up to 768 GB
RAID Levels	0, 1, 5, 6, 10, 50, 60
Management	HP iLO (Integrated Lights-Out)
Server Type	Rack
Processor	Intel Xeon E5-2600 series
Chipset	Intel C600
Memory Slots	24
Memory Type	DDR3
Drive Bays	25 SFF
Hard Drive Interface	SAS, SATA
Network	Gigabit Ethernet
Power Supply	Redundant Power Supplies supported
Expansion Slots	6 PCIe Gen3 slots
Operating System Support	Windows Server, Linux, VMware
Remote Management	HP iLO (Integrated Lights-Out)
Form Factor	Rackmount
