Solid-state drive
Description Spare part number
128 GB M2 SATA 3 TLC L02260-001
256 GB SATA 3 Self-encrypting drive OPAL2 TLC L02262-001
256 GB Turbo drive G2 TLC L02263-001
360 GB Turbo drive G2 TLC L02266-001
512GB PCIE NVME TLC L02264-001
1 TB PCIE NVME TLC L02261-001
IMPORTANT: Make special note of each screw and screw lock size and location during removal and
replacement
Before removing the solid-state drive, follow these steps:
1. Shut down the computer.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet and then
unplugging the AC adapter from the computer.
4. Remove the base enclosure (see Base enclosure on page 34), and then remove the following
components:
a. Battery(see Battery on page 35).
b. Front speakers (see Front speakers on page 36).
c. WWAN module (see WWAN module on page 38).
Remove the solid-state drive:
▲

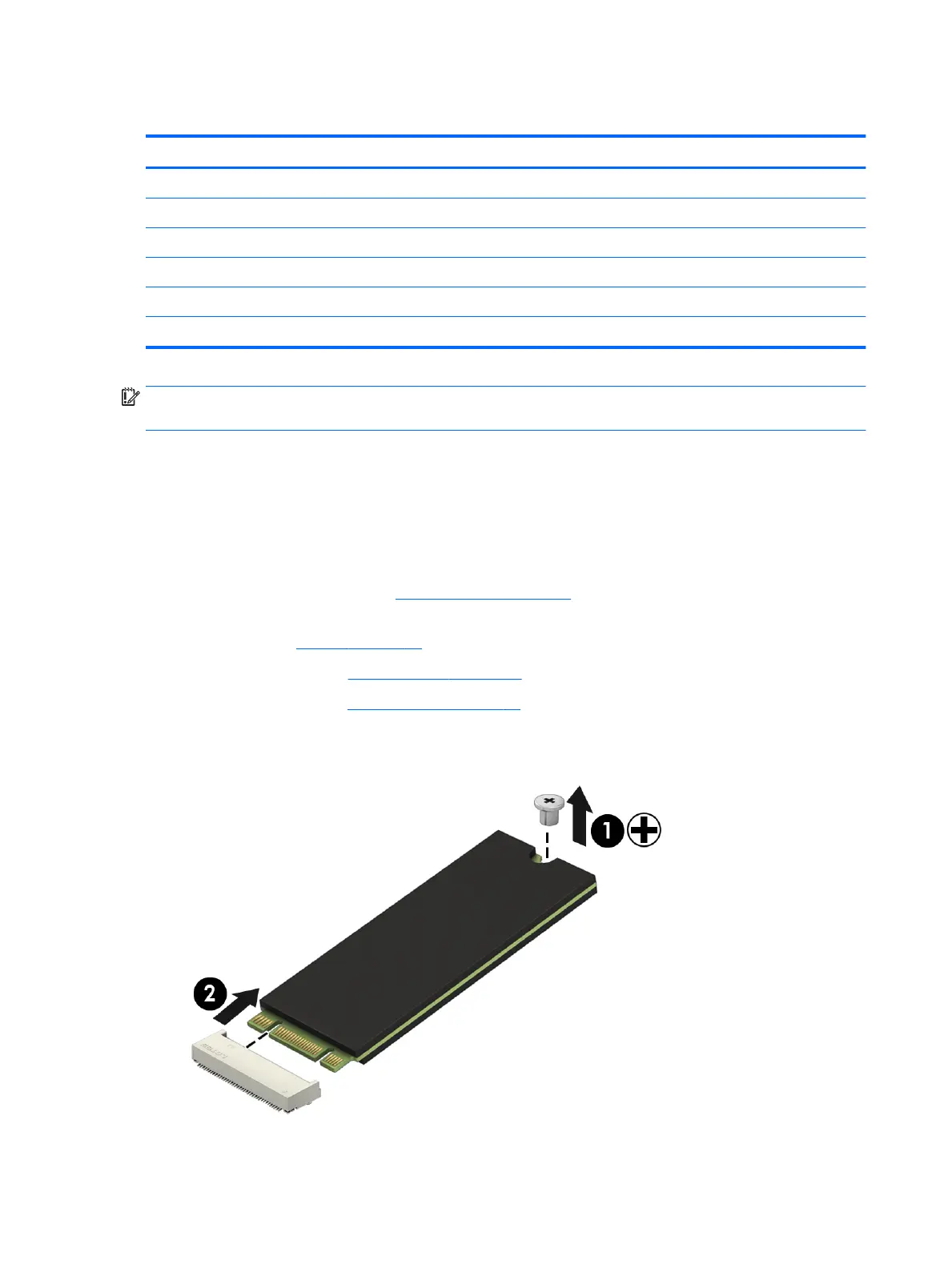

Remove 1 M2*2-I screw (1), and then remove the solid-state drive from the connector (2).
Reverse this procedure to install the solid-state drive.
40 Chapter 5 Removal and replacement procedures for authorized service provider parts
