TouchPad
Description Spare part number
TouchPad L02242-001
IMPORTANT: Make special note of each screw and screw lock size and location during removal and
replacement
Before removing the TouchPad, follow these steps:
1. Shut down the computer.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet and then
unplugging the AC adapter from the computer.
4. Remove the base enclosure (see Base enclosure on page 34), and then remove the following
components:
▲
Battery(see Battery on page 35).

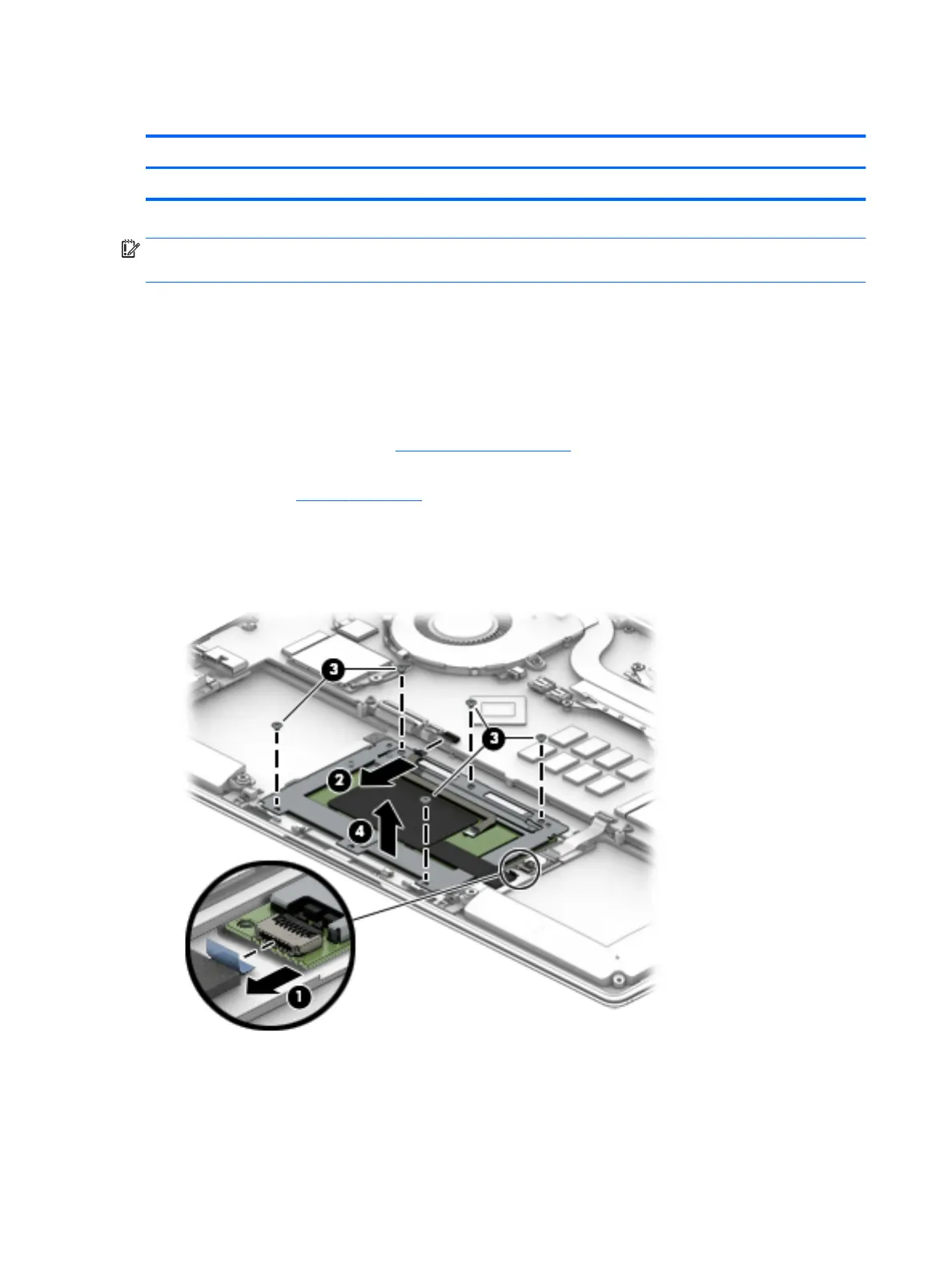

Remove the TouchPad:
1. Disconnect the NFC cable (1) and the TouchPad cable (2).
2. Remove 5 M2*2-I screws (3), and then lift the TouchPad to remove it (4).
Reverse this procedure to install the TouchPad.
