Table 6-6 Fingerprint reader board description and part number (continued)
Description Spare part number
Fingerprint reader insert (for use in models without a ngerprint reader) N00113-001
Before removing the ngerprint reader board, follow these steps:
1. Prepare the computer for disassembly (see Preparation for disassembly on page 37).
2. Remove the bottom cover (see Bottom cover on page 37).
3. Remove the battery (see Battery on page 44).

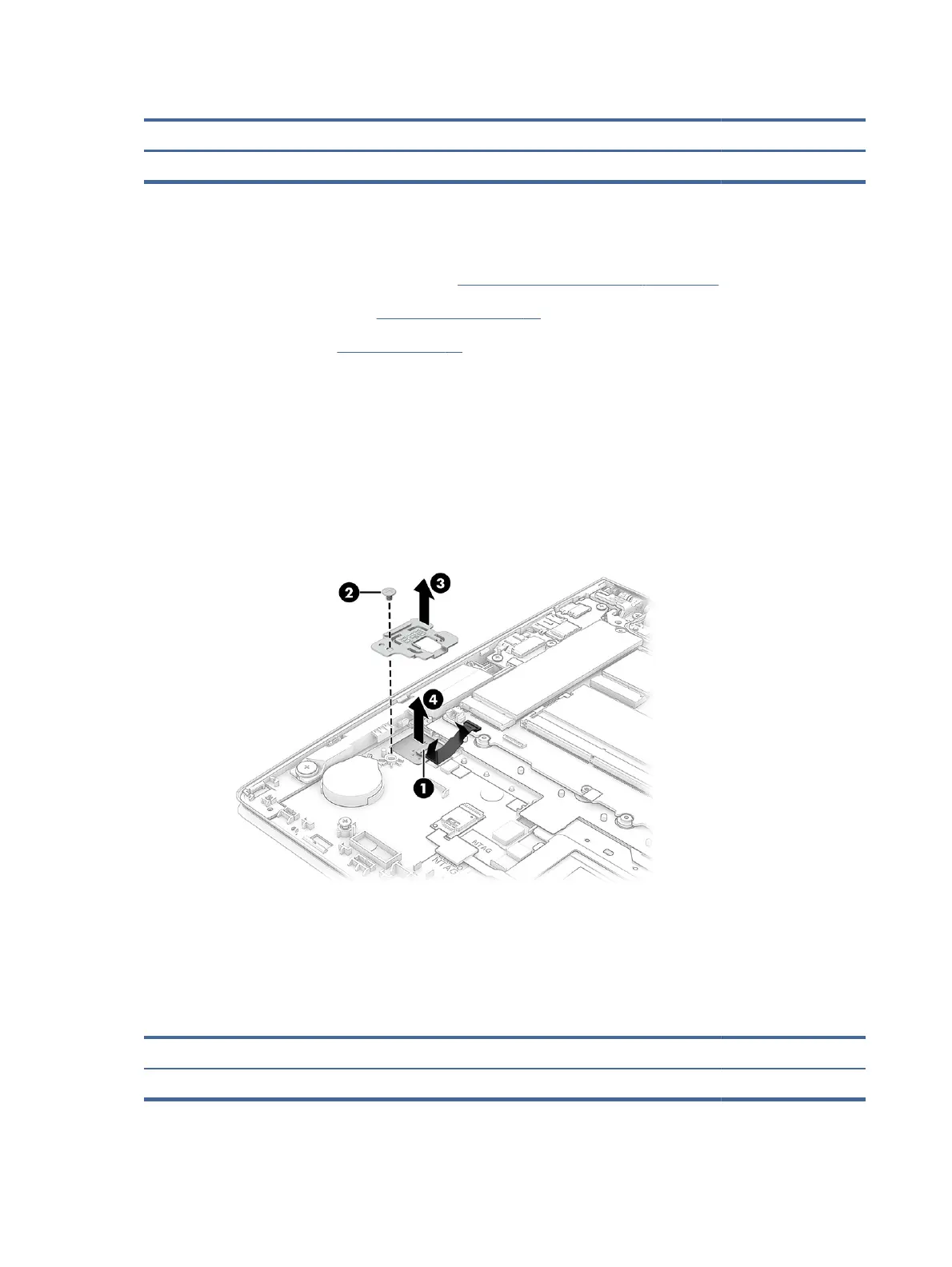

Remove the ngerprint reader board:
1. Disconnect the cable from the ZIF connector on the ngerprint reader board (1).
2. Remove the Phillips M2.0 × 2.5 screw (2) that secures the ngerprint reader bracket to the computer, and
then remove the bracket (3).
3. Remove the ngerprint reader board from the computer (4).
Reverse this procedure to install the ngerprint reader board.
Fan
To remove the fan, use this procedure and illustration.
Table 6-7
Fan description and part number
Description Spare part number
Fan N09818-001
50 Chapter 6 Removal and replacement procedures for authorized service provider parts
