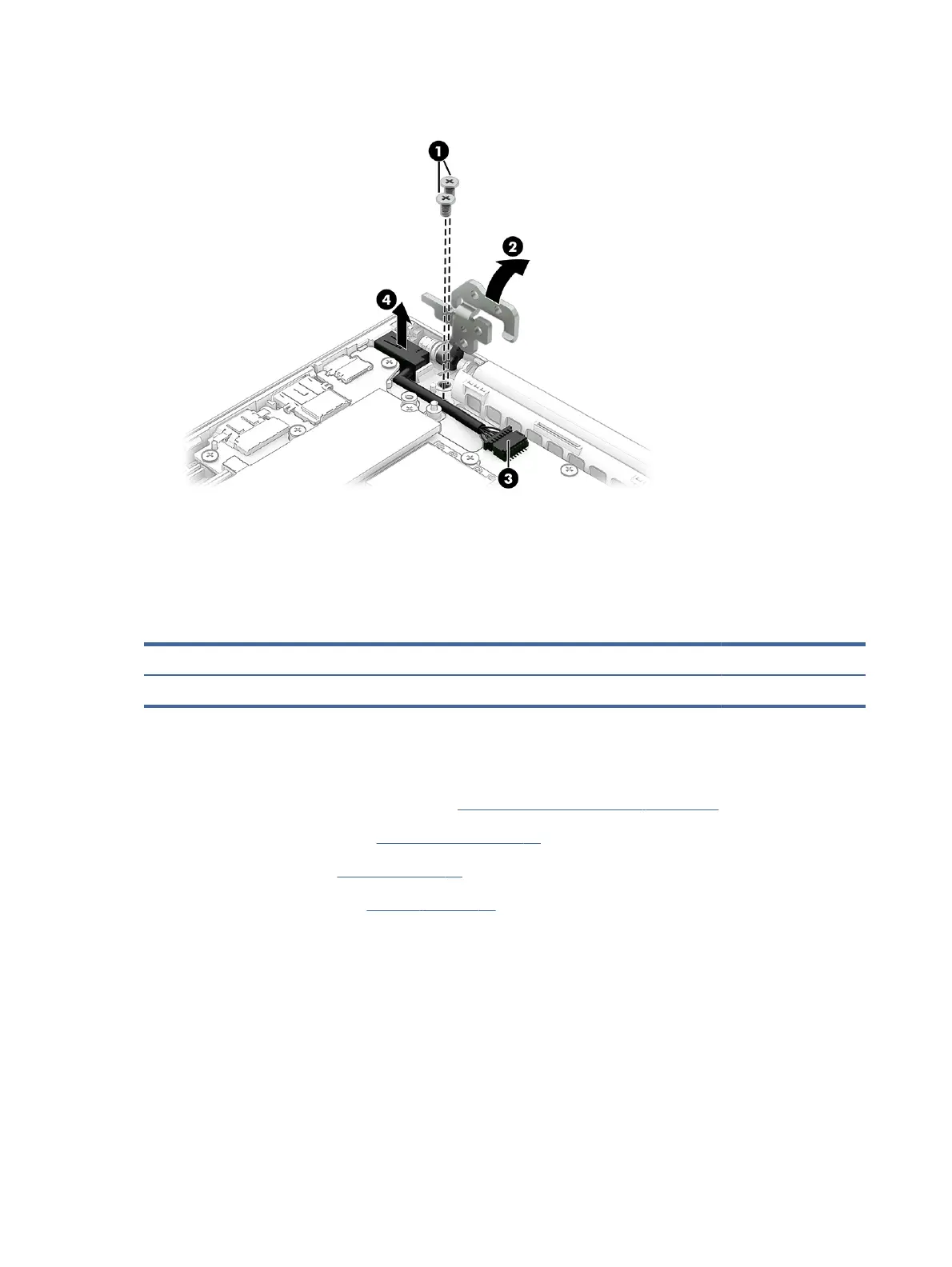

4. Remove the power connector cable from the computer (4).
Reverse this procedure to install the power connector cable.
Smart card reader
To remove the smart card reader from the top cover, use this procedure and illustration.
Table 6-11
Smart card reader description and part number
Description Spare part number
Smart card reader M21398-001
Before removing the smart card reader, follow these steps:
1. Prepare the computer for disassembly (see Preparation for disassembly on page 37).
2. Remove the bottom cover (see Bottom cover on page 37).
3. Remove the battery (see Battery on page 44).
4. Remove the left speaker (see Speaker on page 46).
Remove the smart card reader:
1. Remove the four Phillips M2.0 × 2.0 screws (1) from the metal bracket covering the card reader board.
2. Disconnect the cable from the card reader (2).
56
Chapter 6 Removal and replacement procedures for authorized service provider parts
