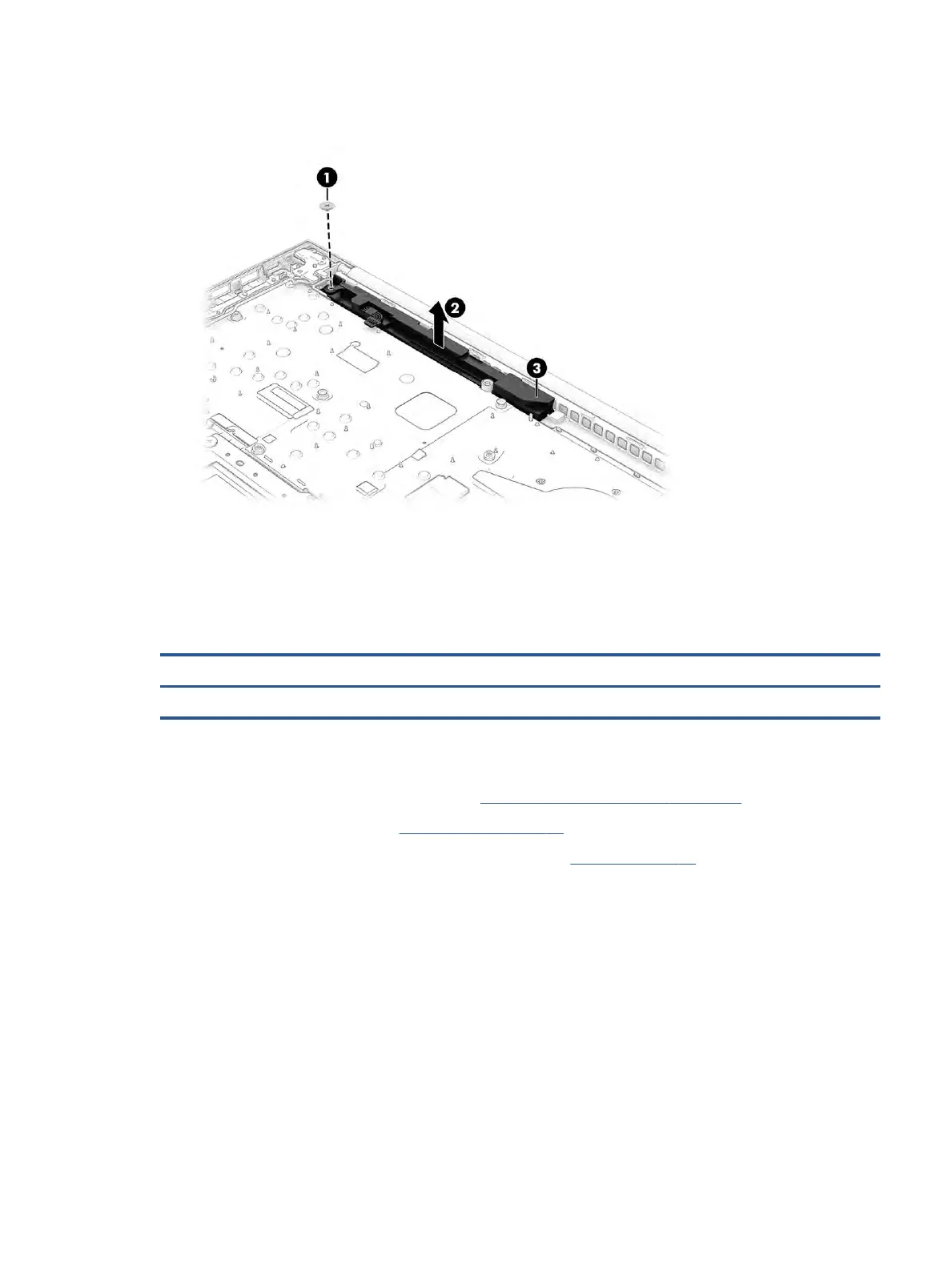

2. Lift the speaker up and out of the computer (2). When installing the speaker, be sure that the rubber cap
in installed on the right end of the speaker (3) .
Reverse this procedure to install the speaker.
Power connector cable
To remove the power connector cable, use this procedure and illustration.
Table 6-11 Power connector cable description and part number
Description Spare part number
Power connector cable M21725-001
Before removing the power connector cable, follow these steps:
1. Prepare the computer for disassembly (see Preparation for disassembly on page 39).
2. Remove the bottom cover (see Bottom cover on page 39).
3. Disconnect the battery cable from the system board (see Battery on page 49).
Remove the power connector cable:
1. Move the antenna cables that route over the right screw (1).
2. Remove the three Phillips M2.5 × 4.0 screws (2) that secure the right display hinge to the computer, and
then rotate the hinge o the power connector (3).
3. Disconnect the cable from the system board (4).
Component replacement procedures 61
