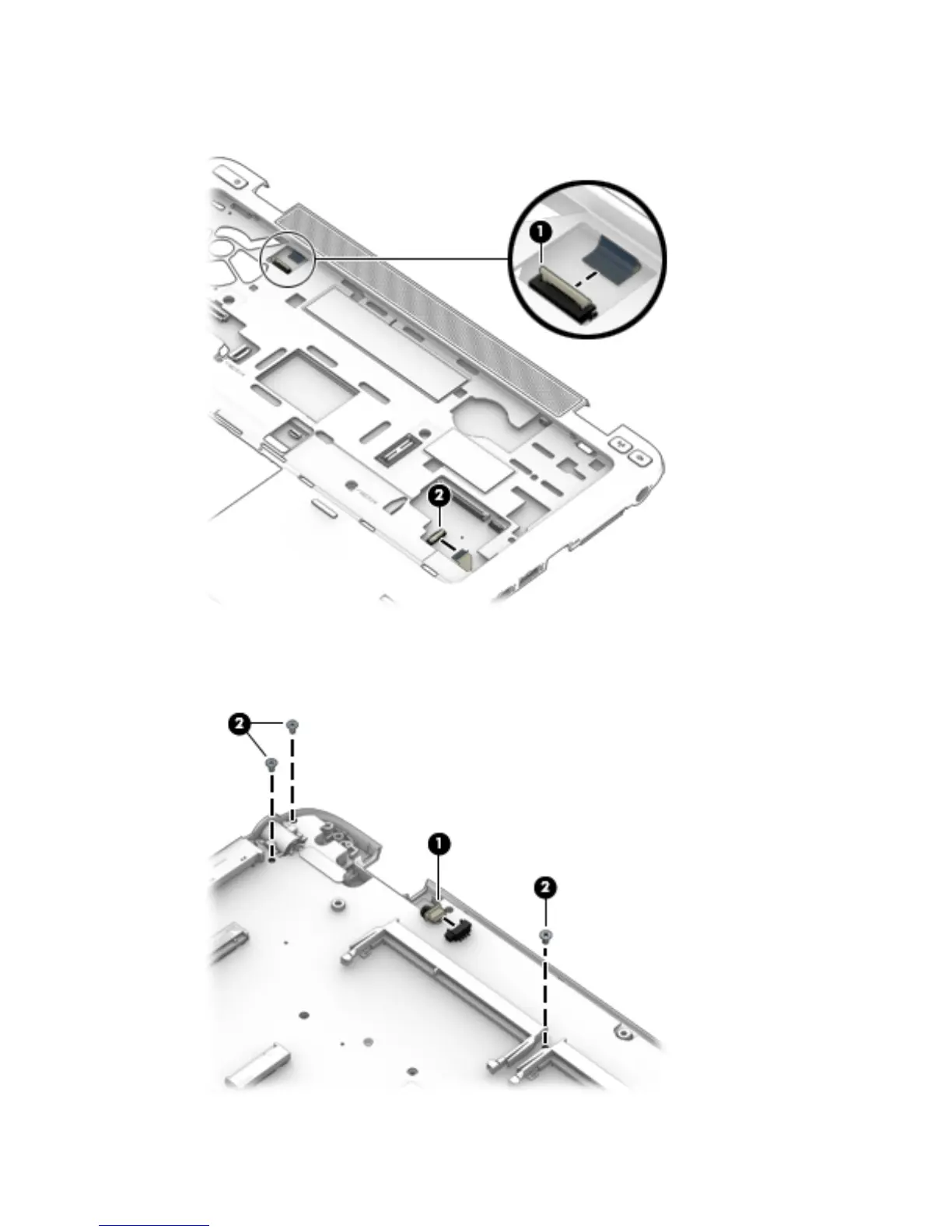

3. Release the ZIF connector (2) to which the fingerprint reader board cable is attached, and then
disconnect the fingerprint reader board cable from the system board.
4. Disconnect the speaker cable (1) from the system board.
5. Remove the three Philllips PM2.0×3.0 screws (2) that secure the system board to the top cover.
ENWW
Component replacement procedures
119
