HP EliteBook 820 G1 - Page 130

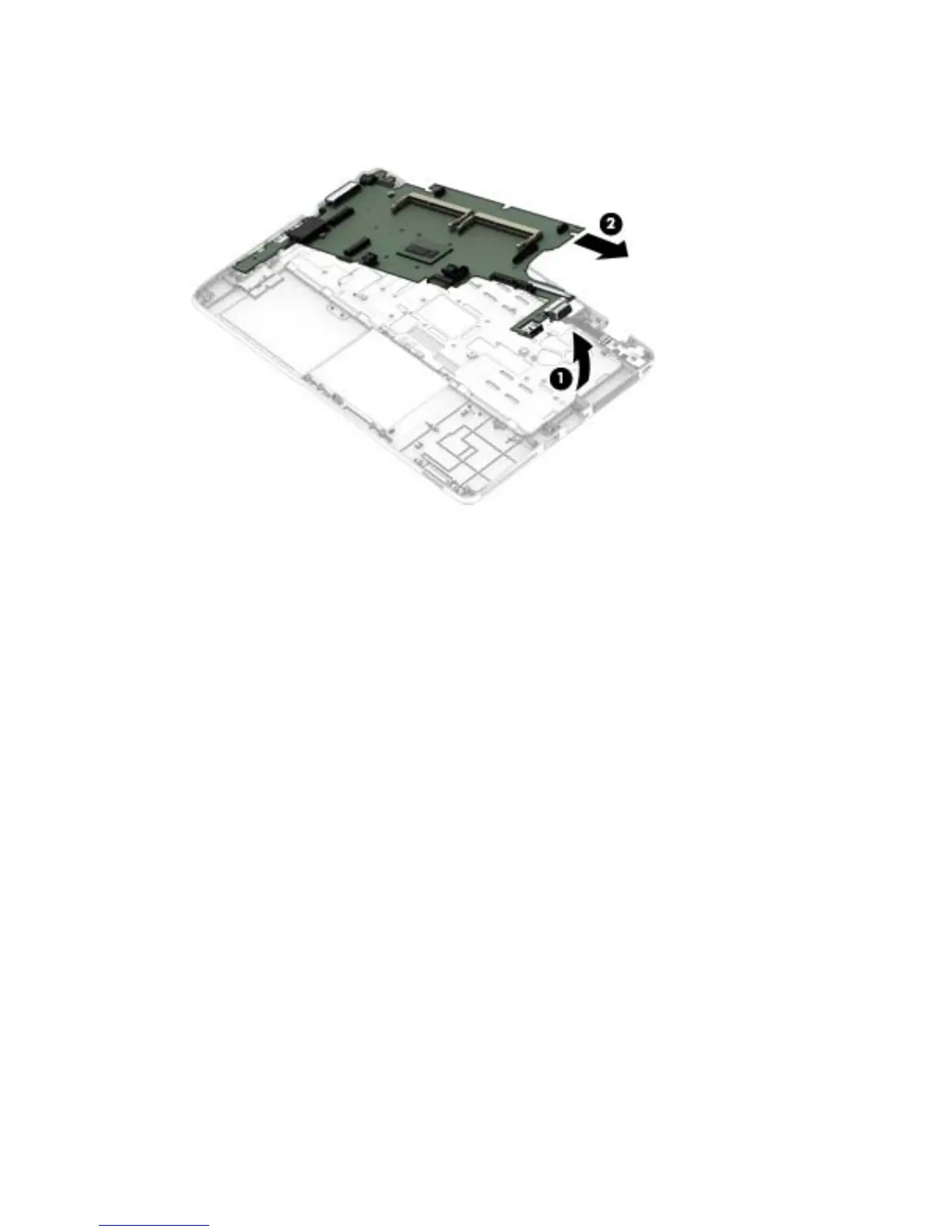

6. Lift up on the right side of the system board (1) until it rests at an angle.
7. Remove the system board (2) by sliding it up and to the right at an angle.
Reverse this procedure to install the system board.
120 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts ENWW
