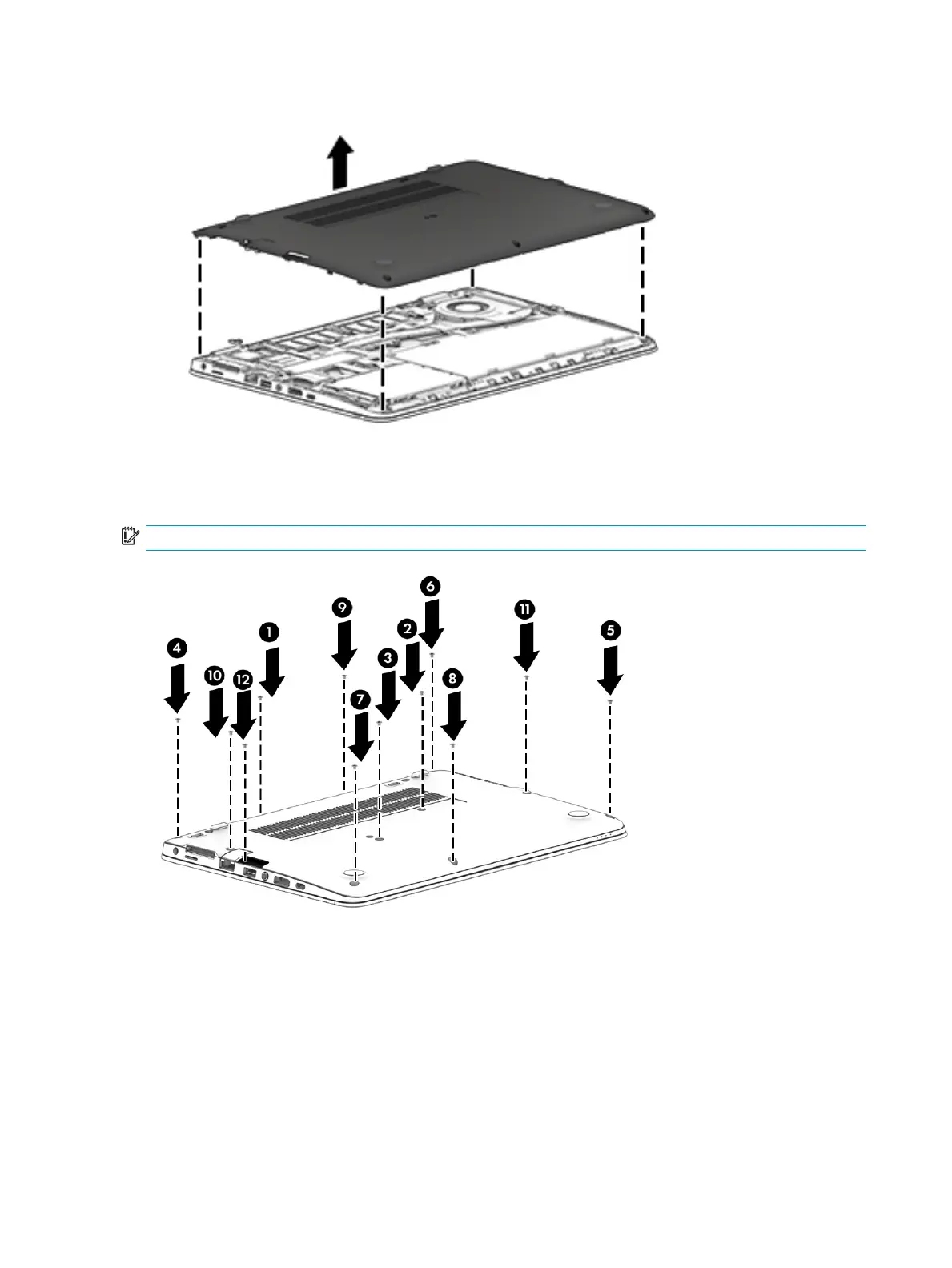

5. Pry up on the top (near the display hinge) of the bottom cover to disengage it from the computer.
Reverse the removal procedures to install the bottom cover.
When replacing the bottom cover screws, be sure to install the screws in the order indicated in the following
image:
IMPORTANT: Failure to install the screws in the correct order can result in uneven bottom cover placement.
There are four dierent sizes of rubber screw covers. Be sure that you reinstall them over the correct screws.
The rubber-screw cover sizes are as shown in the following image:
32 Chapter 5 Removal and replacement procedures for Customer Self-Repair parts
