NFC module
Description Spare part number
NFC (Near Field Communication) module (includes NFC cable and NFC antenna) 821666-001
NFC cable (included in the Cable Kit) 912091-001 (Cable Kit)
Before removing the NFC module, follow these steps:
1. Turn o the computer. If you are unsure whether the computer is o or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the bottom cover (see Bottom cover on page 30).
5. Remove the battery (see Battery on page 35).
6. Remove the touchpad (see Touchpad board on page 59).

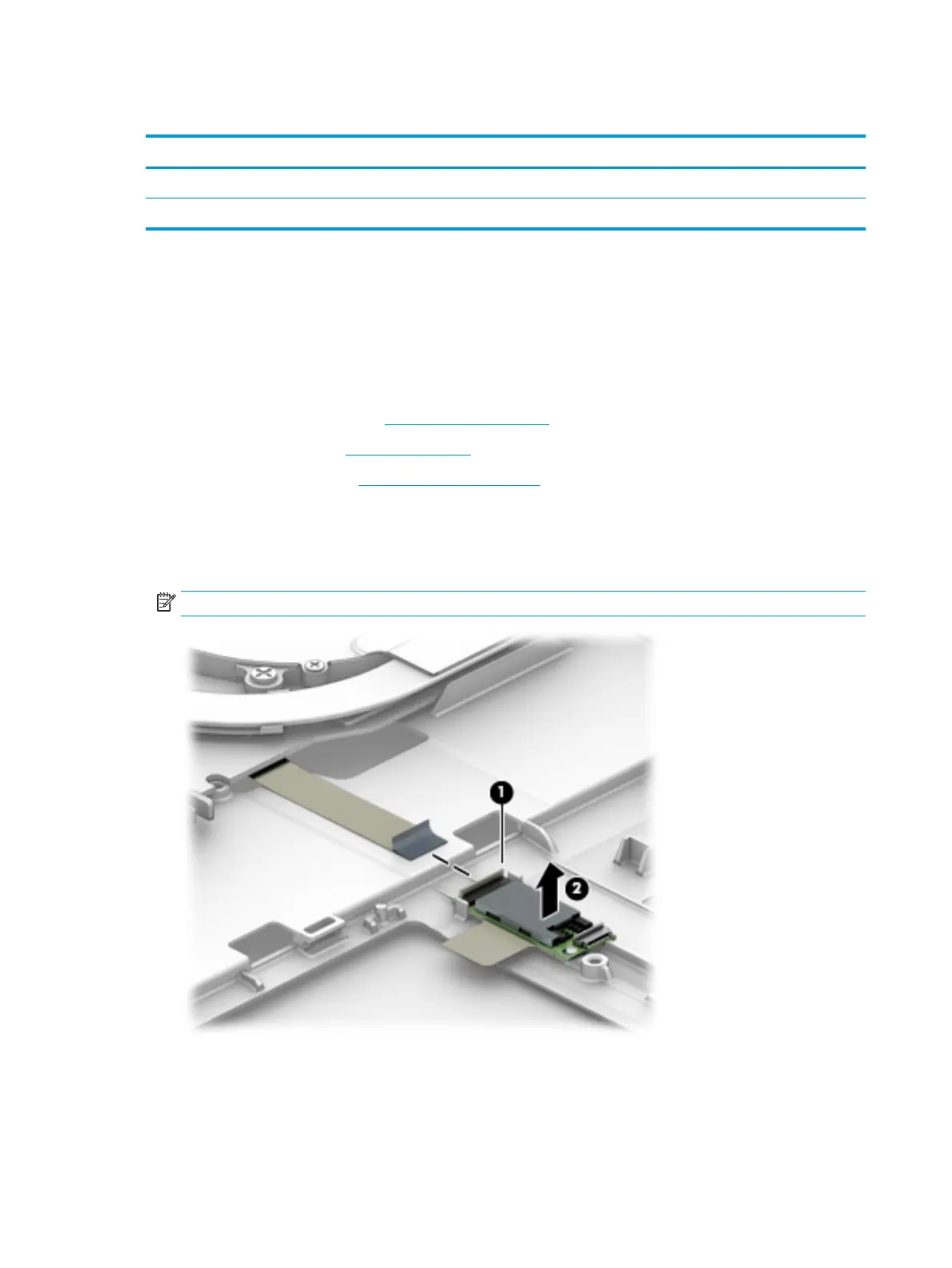

Remove the NFC module:
1. Disconnect the cable from the top of the NFC module (1).
2. Lift the module from the computer (2).
NOTE: The NFC antenna is spared with the touchpad.
Reverse the removal procedures to install the NFC module.
60 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
