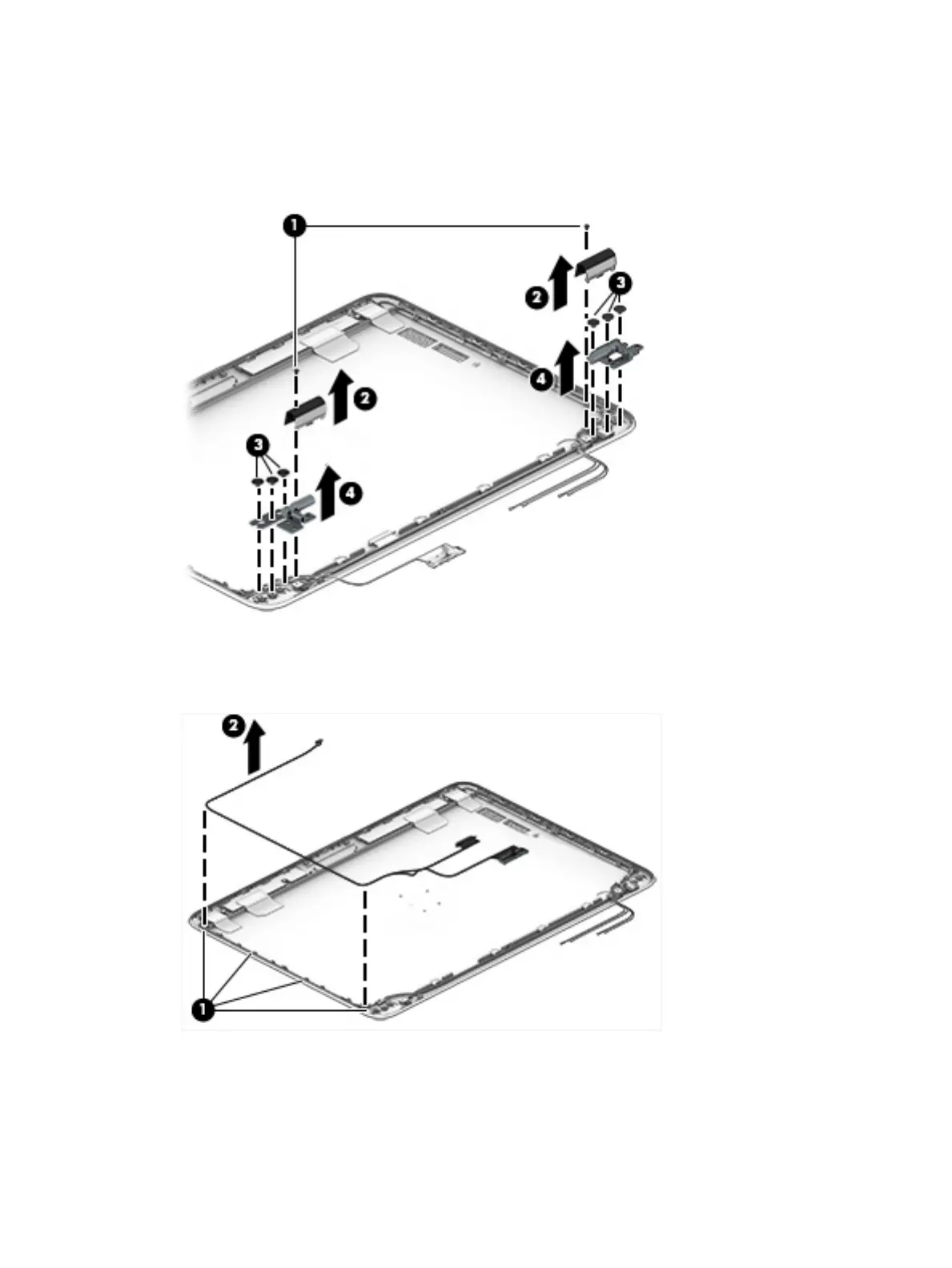

14. Remove the 6 Phillips broadhead M2.0x2.0 screws (3) that secure the hinges to the display enclosure,
and then remove the display hinges from the display enclosure (4).
Display hinges are available in the Display Hinge Kit using spare part number 821674-001.
Display hinge covers are available in the Plastics Kit using spare part number 821675-001.
15. If it is necessary to replace the display/webcam cable, remove the display/webcam cable assembly from
the routing (1) and then lift it from the display enclosure (2).
The display cable is available in the Cable Kit using spare part number 912091-001.
54 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
