3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet
and then unplugging the AC adapter from the computer.
4. Remove the battery (see
Battery on page 45).
5. Remove the service access cover (see
Service access cover on page 46).
6. Position the computer with the front toward you.

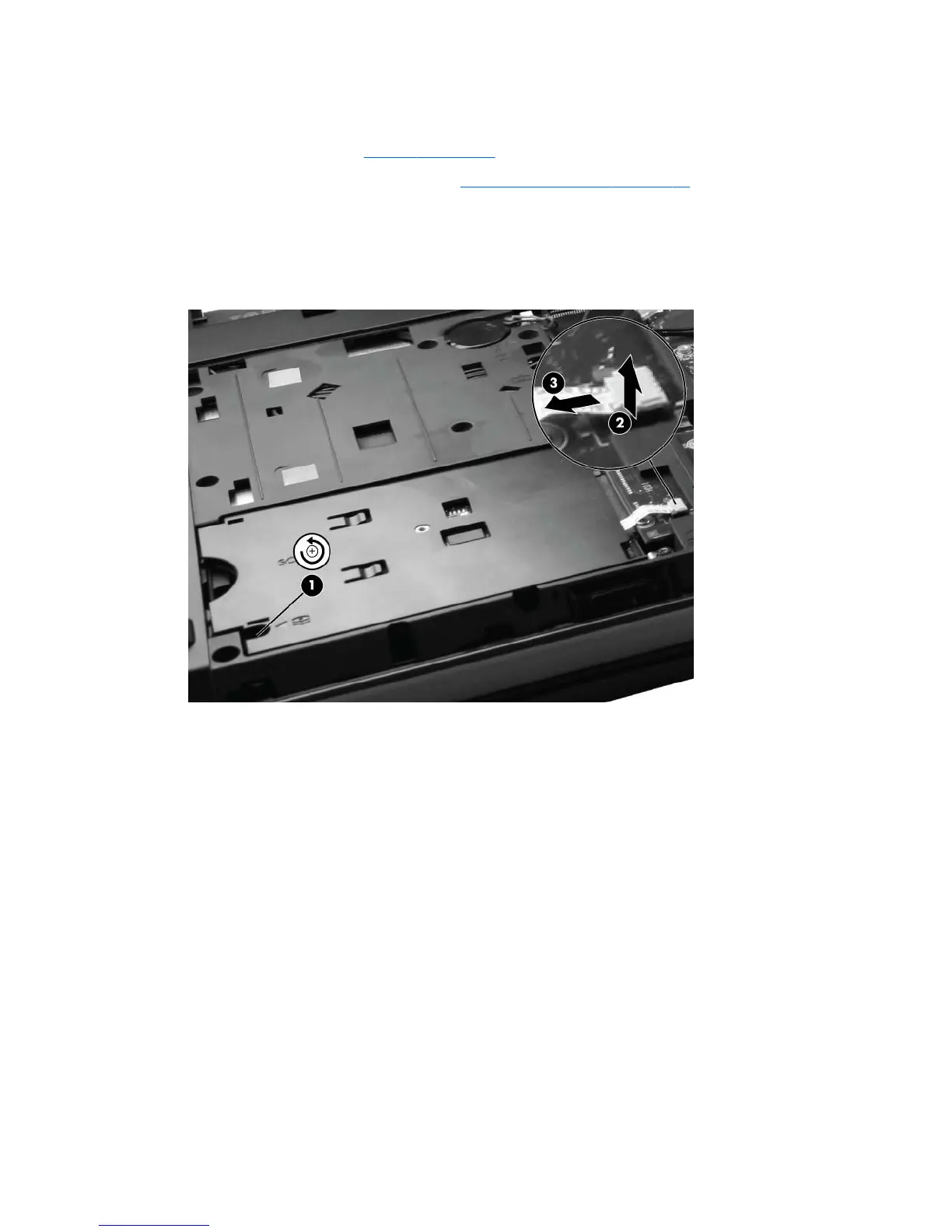

7. Loosen the captive screw (1) on the Smart Card reader cover.
8. Disconnect the zero insertion force (ZIF) connector (2) and remove the cable (3) from the
system board.
52 Chapter 4 Removal and replacement procedures
