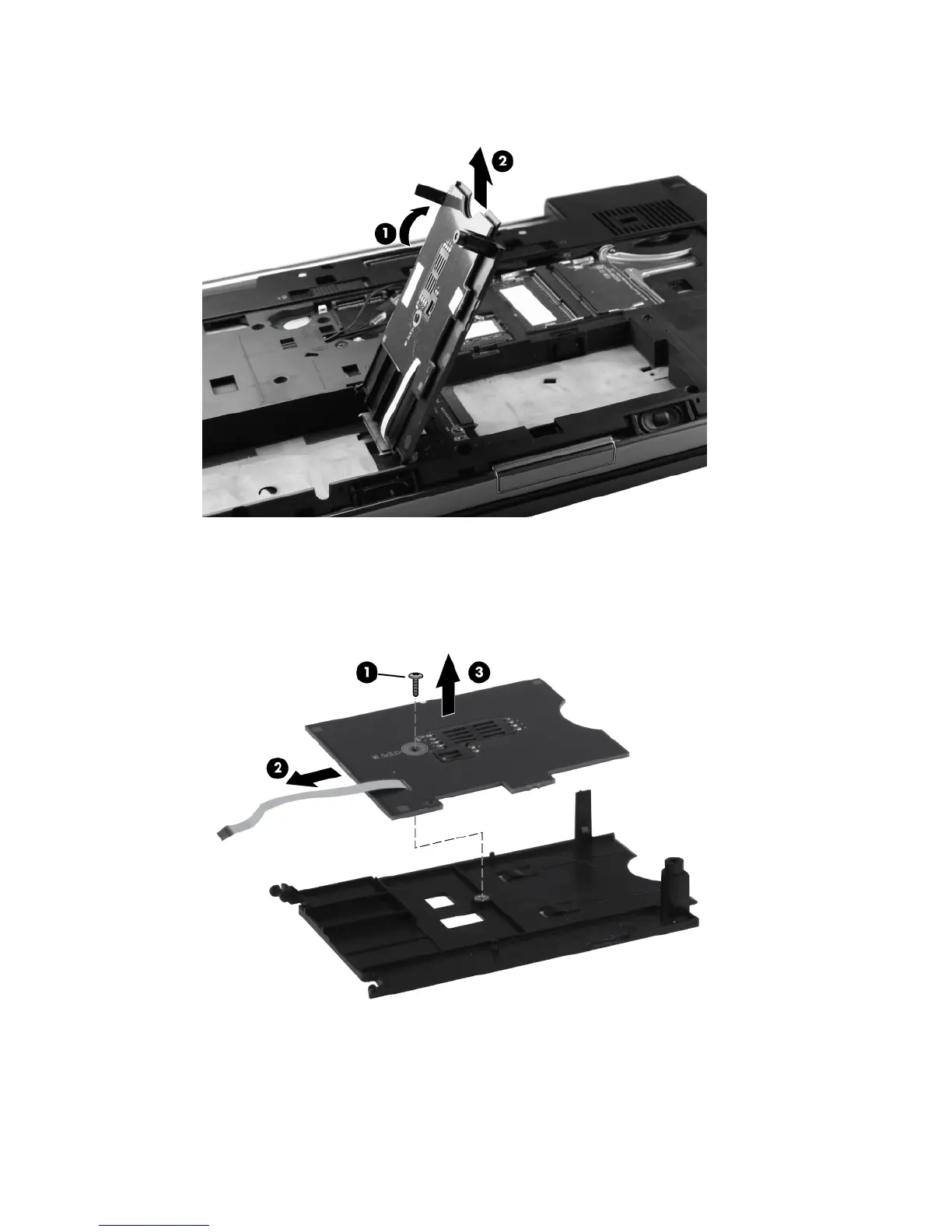

9. Lift the rear edge (1) of the Smart Card reader cover and remove the cover (2).
10. Remove the Phillips M3.0x2.5 screw (1) that secures the Smart Card reader to the Smart Card
reader cover.
11. Slide the Smart Card reader (2) back toward the hinges on the Smart Card reader cover.
12. Remove the Smart Card reader (3) from the Smart Card reader cover.
Reverse this procedure to reassemble and install the Smart Card reader.
