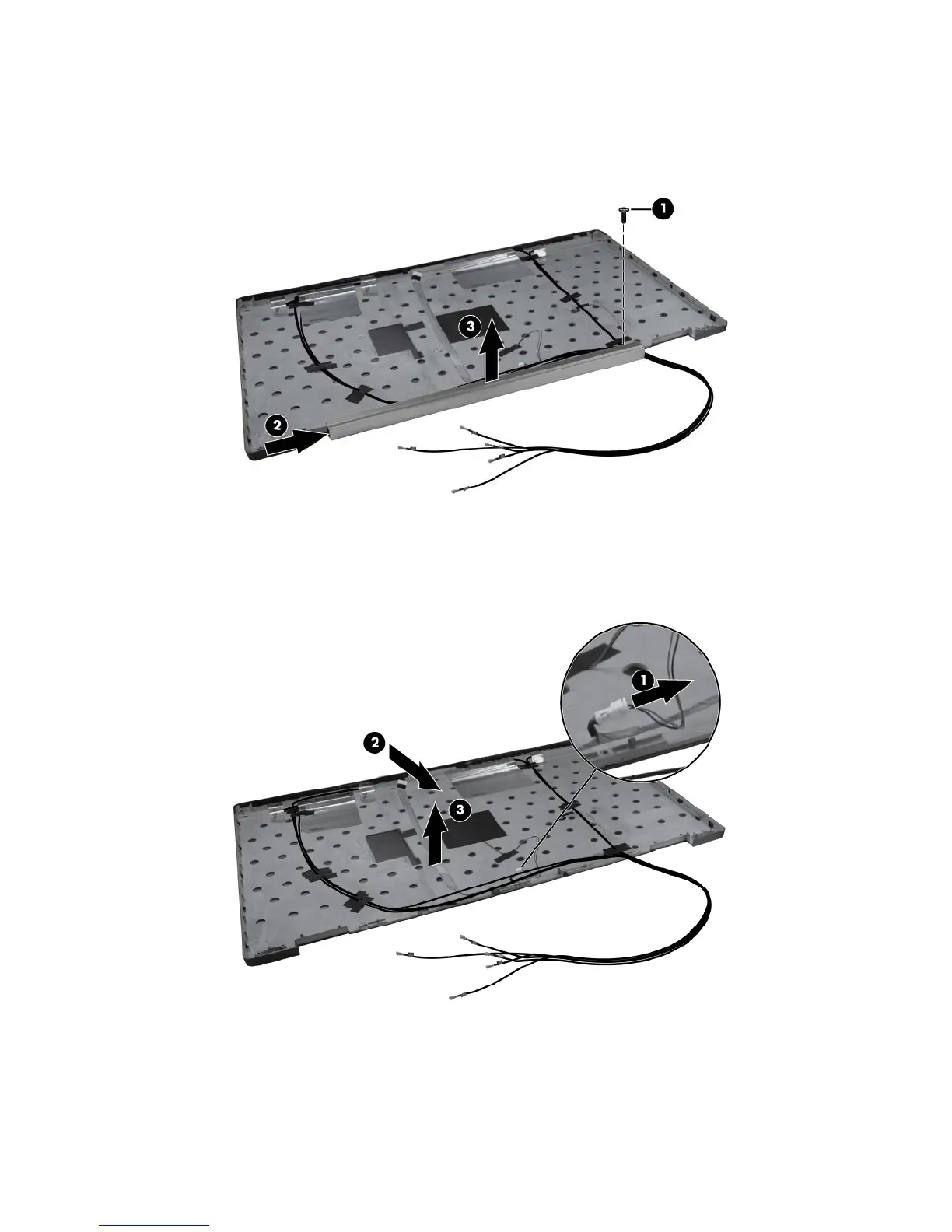

11. If it is necessary to replace the webcam cable:
a. Remove the Phillips screw (1) from the routing channel. Slide the routing channel to the
right and lift up. Remove the webcam cable from the channel (2).
b. Disconnect the webcam from the connector (1).
c. Disconnect the webcam cable (2) from the webcam.
d. Remove the webcam cable (3).
90 Chapter 4 Removal and replacement procedures
