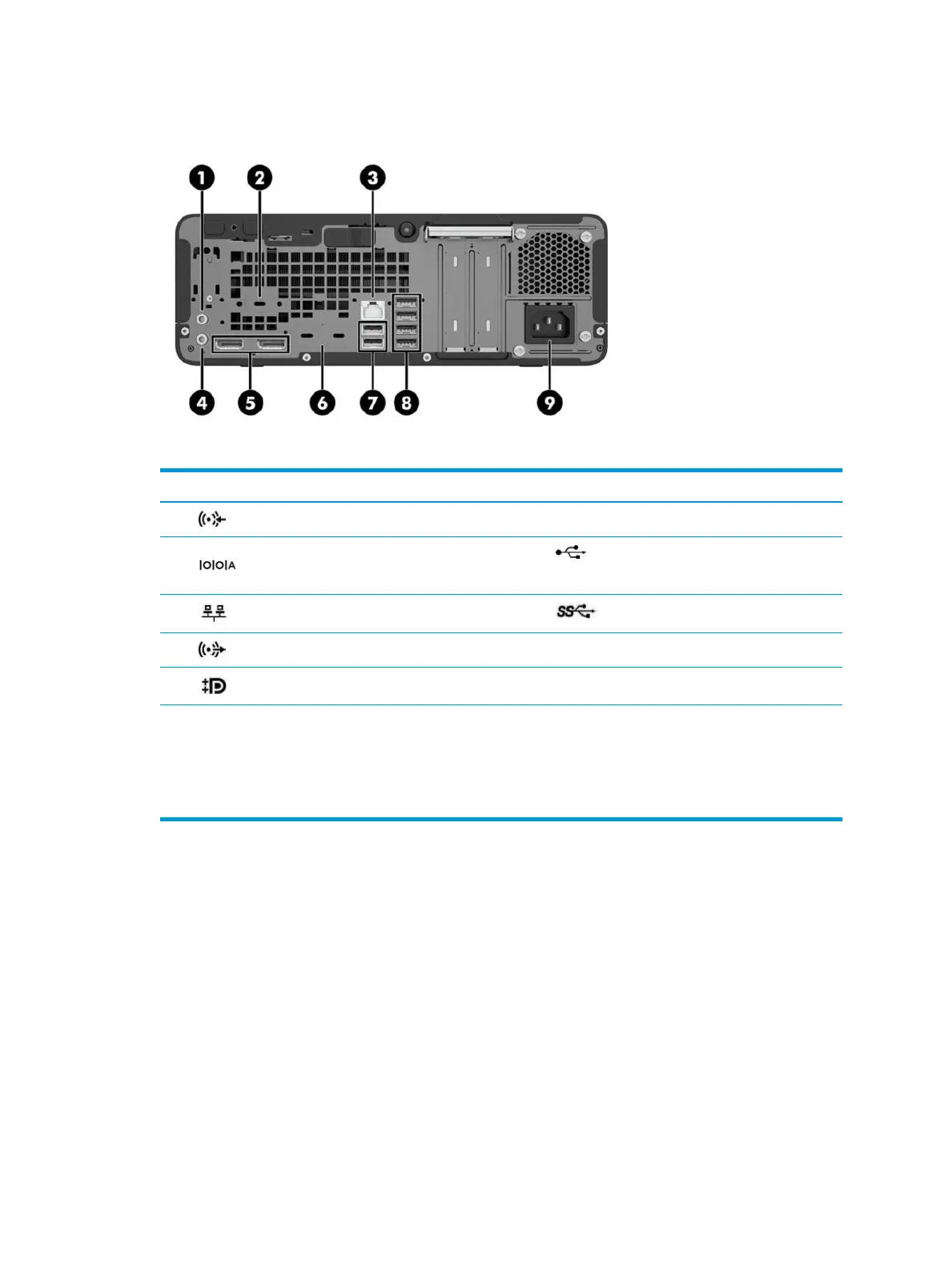

Rear panel components
Table 1-2 Identifying the rear panel components
Rear panel components
1 Audio-in jack 6 Optional port
2 Serial port (optional) 7 USB ports (2)
3 RJ-45 (network) jack 8 USB SuperSpeed ports (4)
4 Audio-out jack for powered audio devices 9 Power cord connector
5 DisplayPort™ monitor connectors (2)
NOTE: Your model might have additional optional ports available from HP.
When a graphics card is installed in one of the system board slots, you can use the video connectors on the graphics card or the
integrated graphics on the system board. The specic graphics card installed and software conguration determine the
behavior.
You can disable the system board graphics by changing settings in BIOS F10 Setup.
Rear panel components 3
