Drive cage
You must remove the drive cage to access the components underneath.
Before removing the drive cage, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 20).
2. Remove the access panel (Access panel on page 23).
3. Remove the front bezel (Front bezel on page 24).
Remove the drive cage:
1. Disconnect the power and data cables from the rear of the drives in the drive cage.

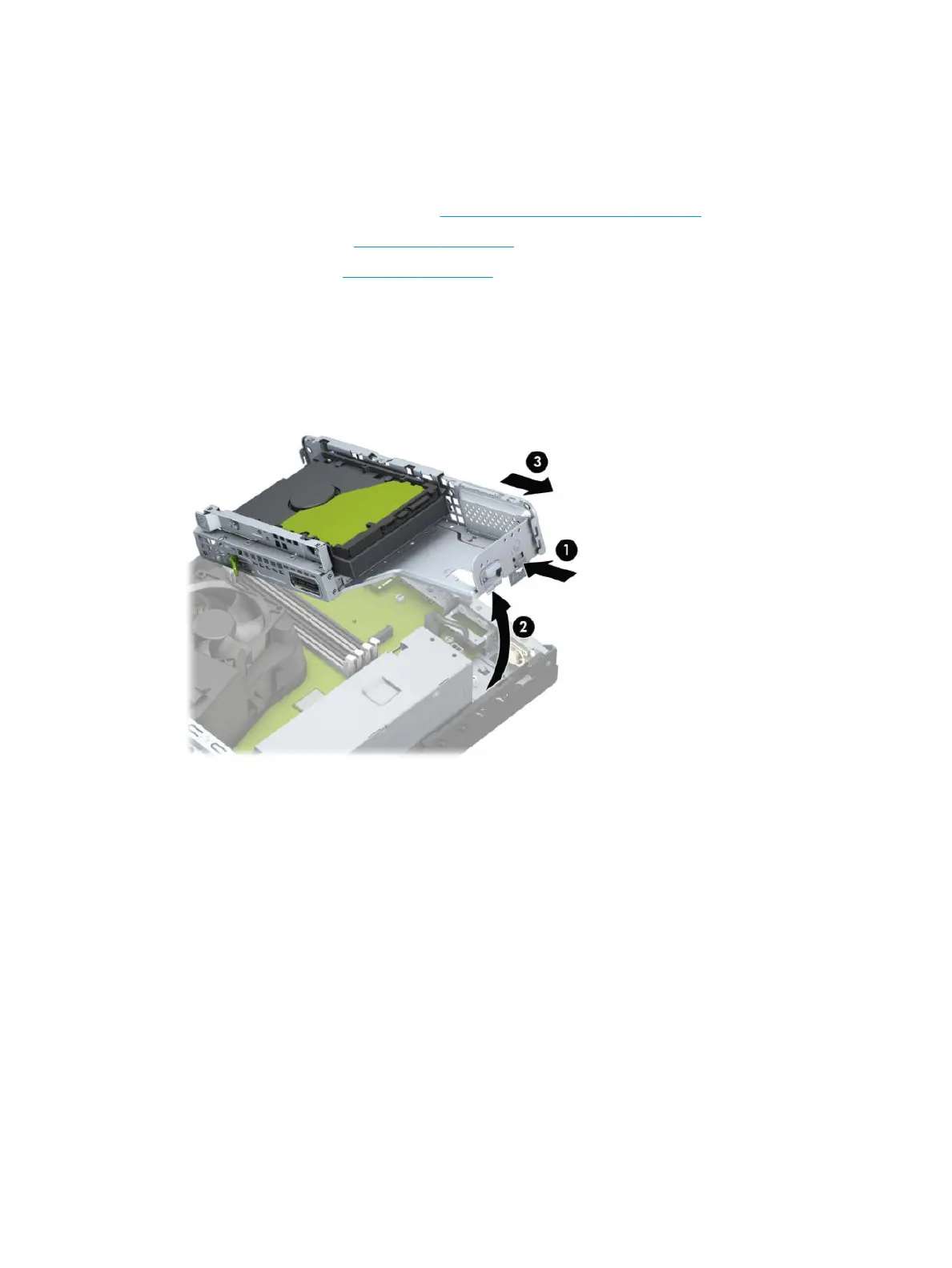

2. Press the release lever on the side of the drive cage (1), and then lift that side of the drive cage up (2).
3. Remove the drive cage from the chassis (3).
To install the drive cage, reverse the removal procedure.
26 Chapter 4 Removal and replacement procedures
