Front bezel
Before removing the front bezel, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 20).
2. Remove the access panel (Access panel on page 23).
Remove the front bezel:

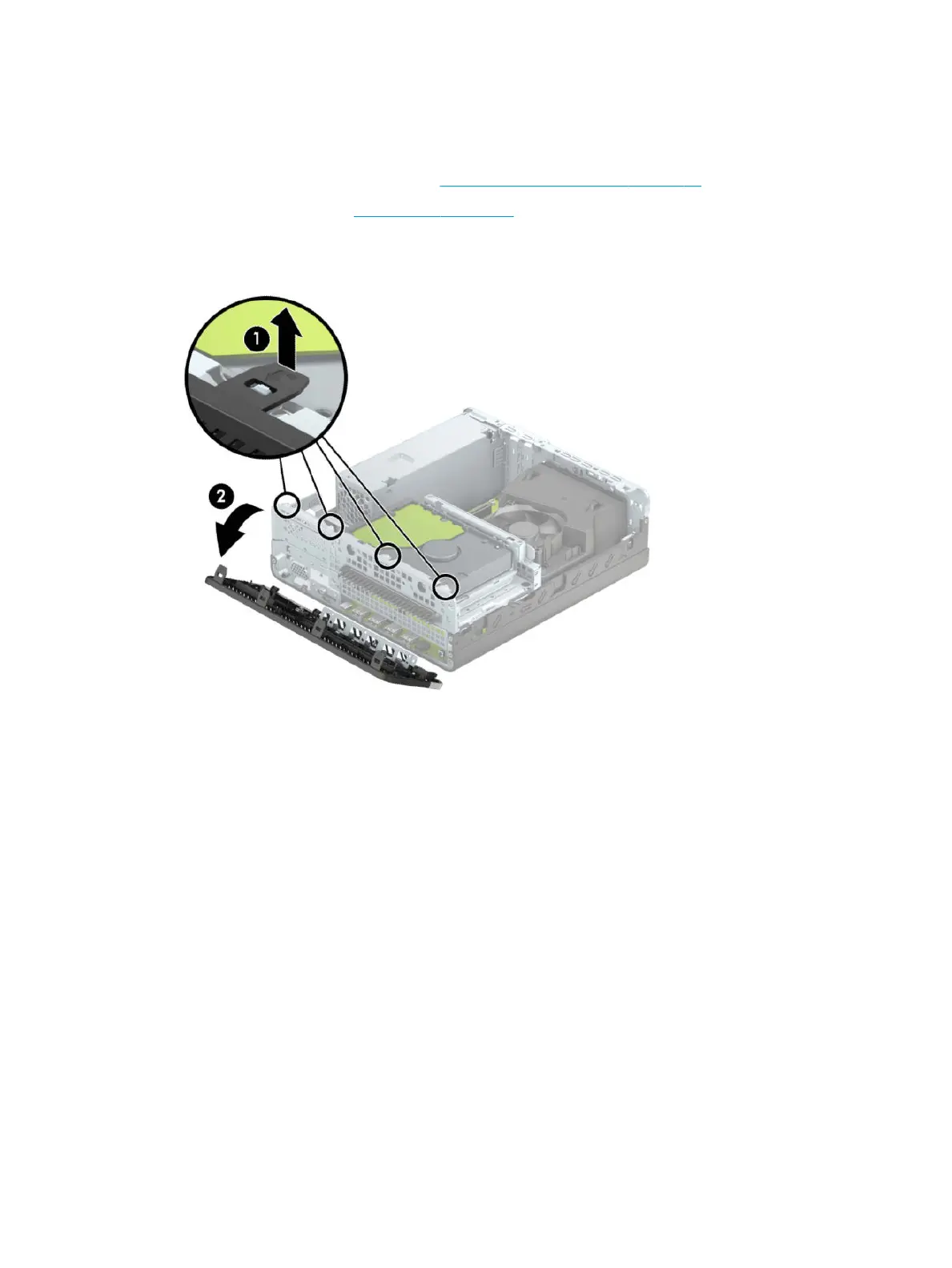

▲ Lift up the four tabs on the top of the bezel (1), and then rotate the bezel o the chassis (2).
To install the front bezel, reverse the removal procedure.
24 Chapter 4 Removal and replacement procedures
