Fan duct
Before removing the fan duct, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 20).
2. Remove the access panel (Access panel on page 23).

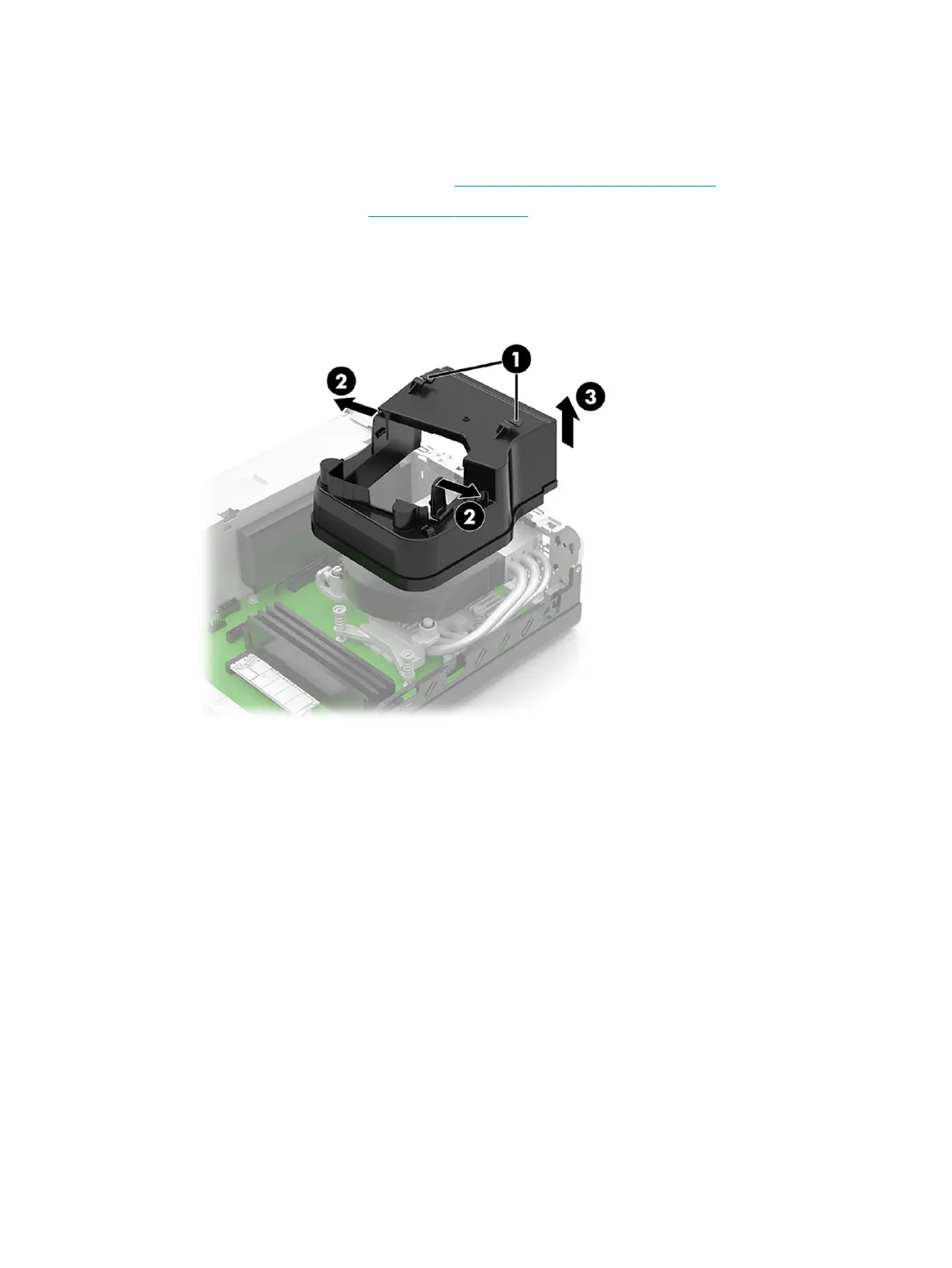

Remove the fan duct:
1. Remove the cable from the clips on top of the duct (1).
2. Pull the tabs on the sides of the duct away from each other (2), and then remove the fan duct from the
computer (3).
Reverse the removal procedures to install the fan duct.
