Access panel
Before removing the access panel, follow these steps:
▲ Prepare the computer for disassembly (Preparation for disassembly on page 20).
Remove the access panel:

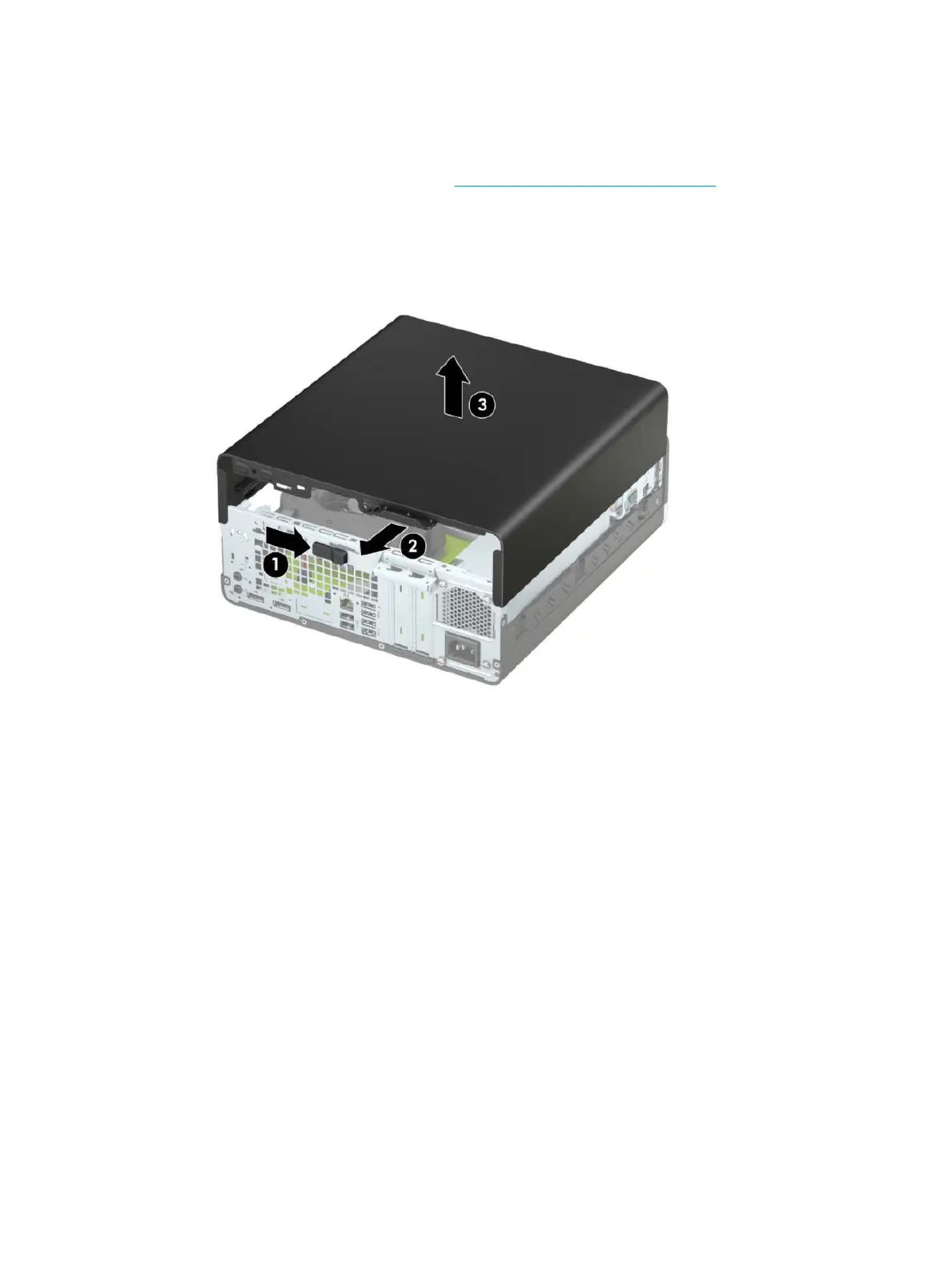

1. Slide the access panel release lever to the right (1) so that it locks into place.
2. Slide the access panel back (2), and then lift it o the computer (3).
To install the access panel, reverse the removal procedure.
Access panel 23
