Hood sensor
The hood sensor is attached to the rear of the chassis.
Before removing the hood sensor, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 20).
2. Remove the access panel (Access panel on page 23).
Remove the hood sensor:

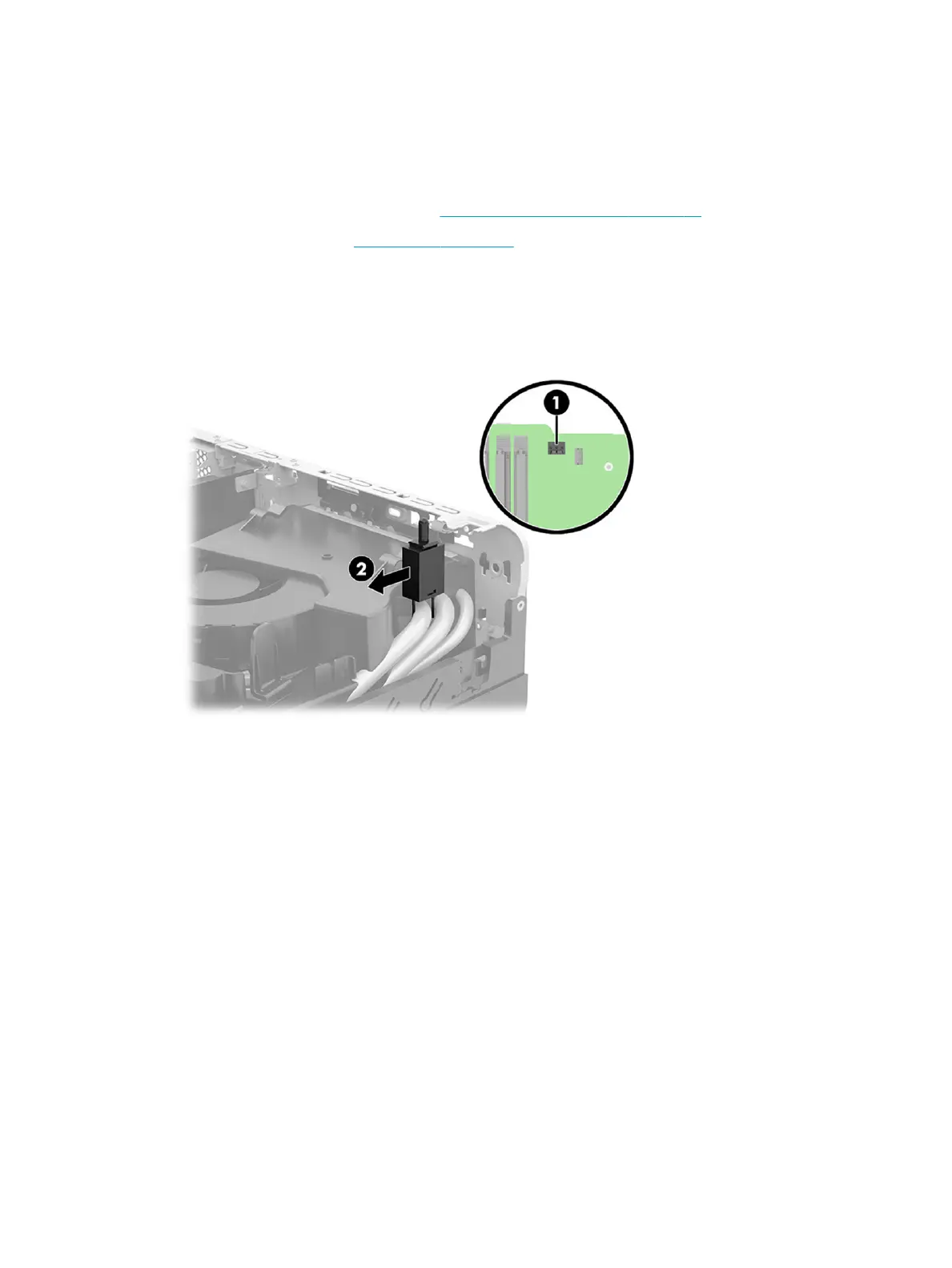

1. Disconnect the hood sensor cable from the system board connector labeled HSENSE (1).
2. Slide the hood sensor out of the slot on the rear of the chassis (2). A tool such as a screwdriver might be
required to release the hood sensor from the slot.
To install the hood sensor, reverse the removal procedure.
52 Chapter 4 Removal and replacement procedures
