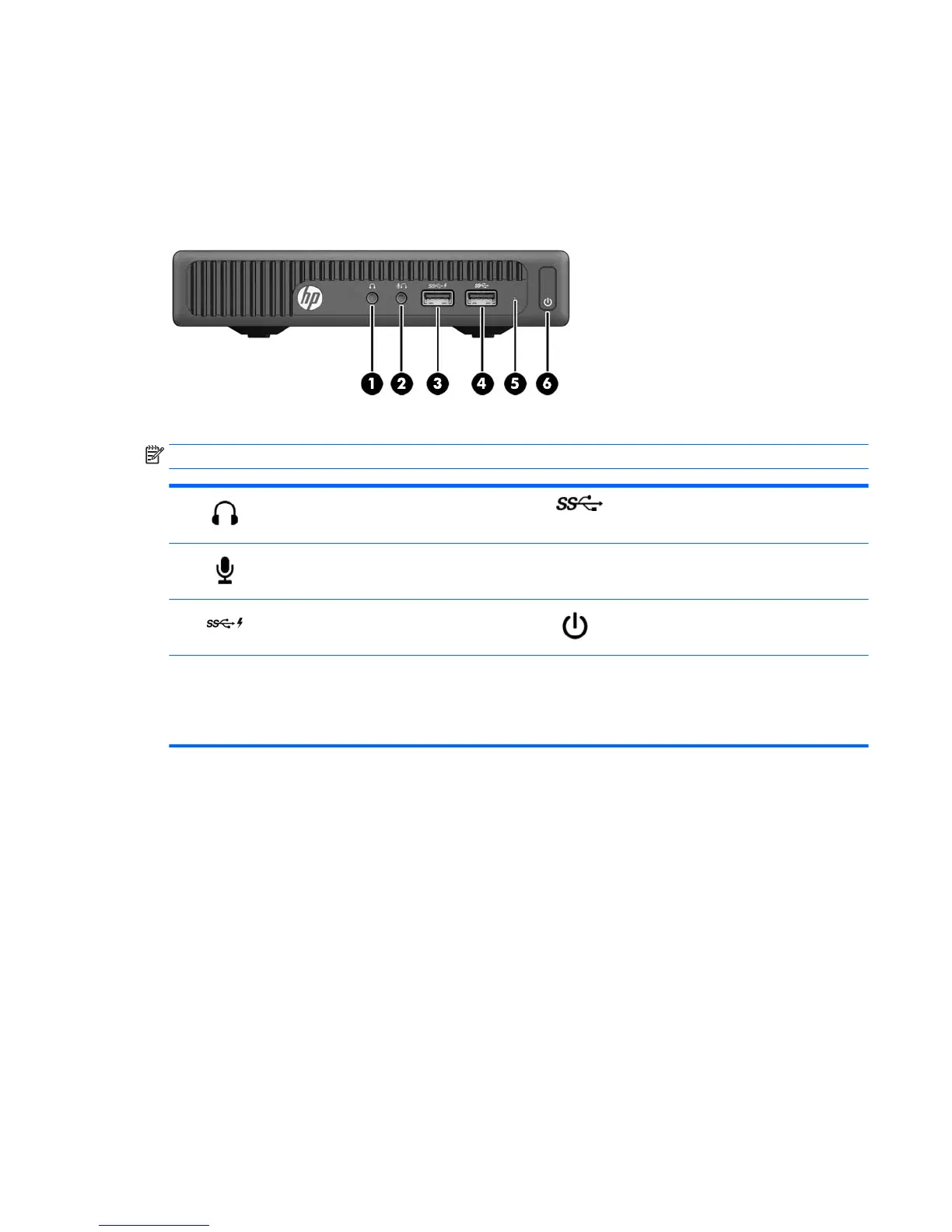

Front panel components (EliteDesk 705)
NOTE: Your computer model may look slightly dierent from the illustration in this section.
1 Headphone Connector 4 USB 3.0 Port
2 Microphone Connector 5 HDD Activity LED
3 USB 3.0 Port–Charging 6 Dual-State Power Button
NOTE: The USB 3.0 Port–Charging also provides current to charge a device such as a Smart Phone. The charging current is available
whenever the AC power cord is connected to the system, even when the system is o.
NOTE: The Power On Light is normally white when the power is on. If it is ashing red, there is a problem with the computer and it is
displaying a diagnostic code. Refer to the Maintenance and Service Guide to interpret the code.
Front panel components (EliteDesk 705) 3
