HP EliteDesk 800 G4 SFF - Page 46

–

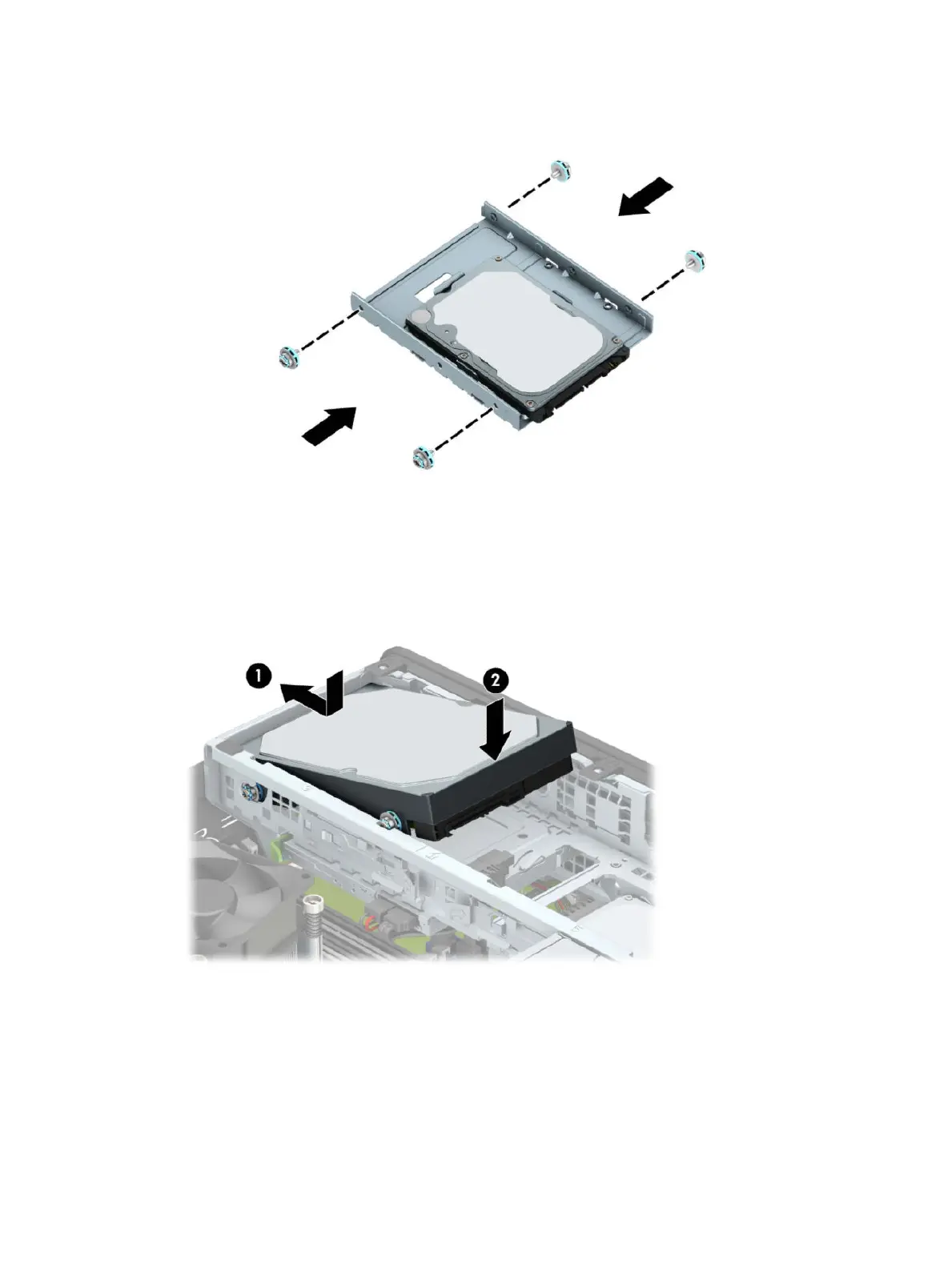

Install four 6-32 silver-and-blue mounting screws in the adapter bracket (two on each side of
the bracket).
4. Align the mounting screws on the front of the hard drive with the slots on the drive cage and press the
front of the drive down and forward into the bay (1). Then press the rear of the drive down into the drive
bay (2) to lock it in place.
38 Chapter 4 Removal and replacement procedures
