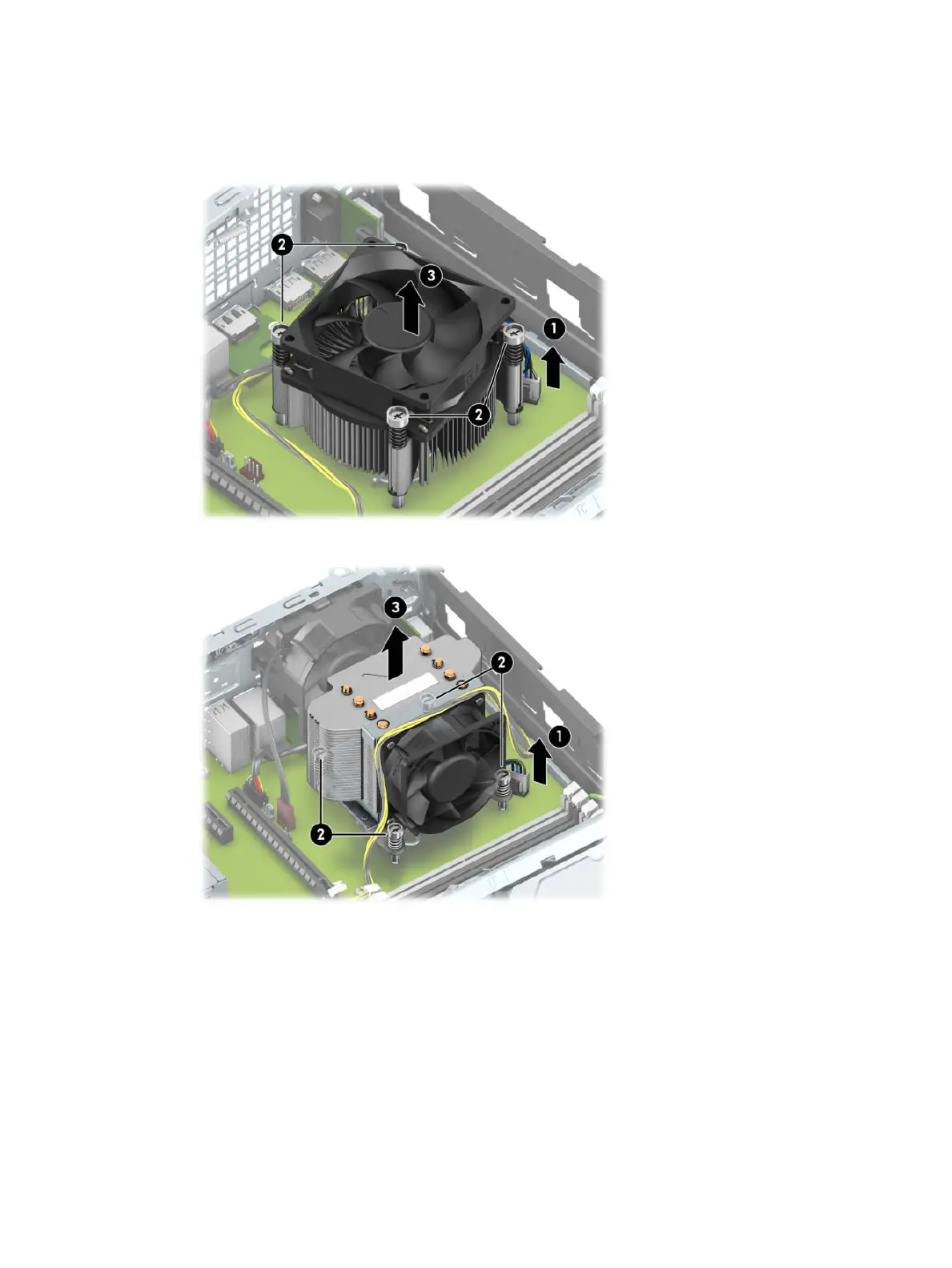

5. Lift the fan sink from atop the processor (3) and set it on its side to keep from contaminating the work

area with thermal grease.

Up to 65 W processor models

95 W processor models

Fan sink 55
