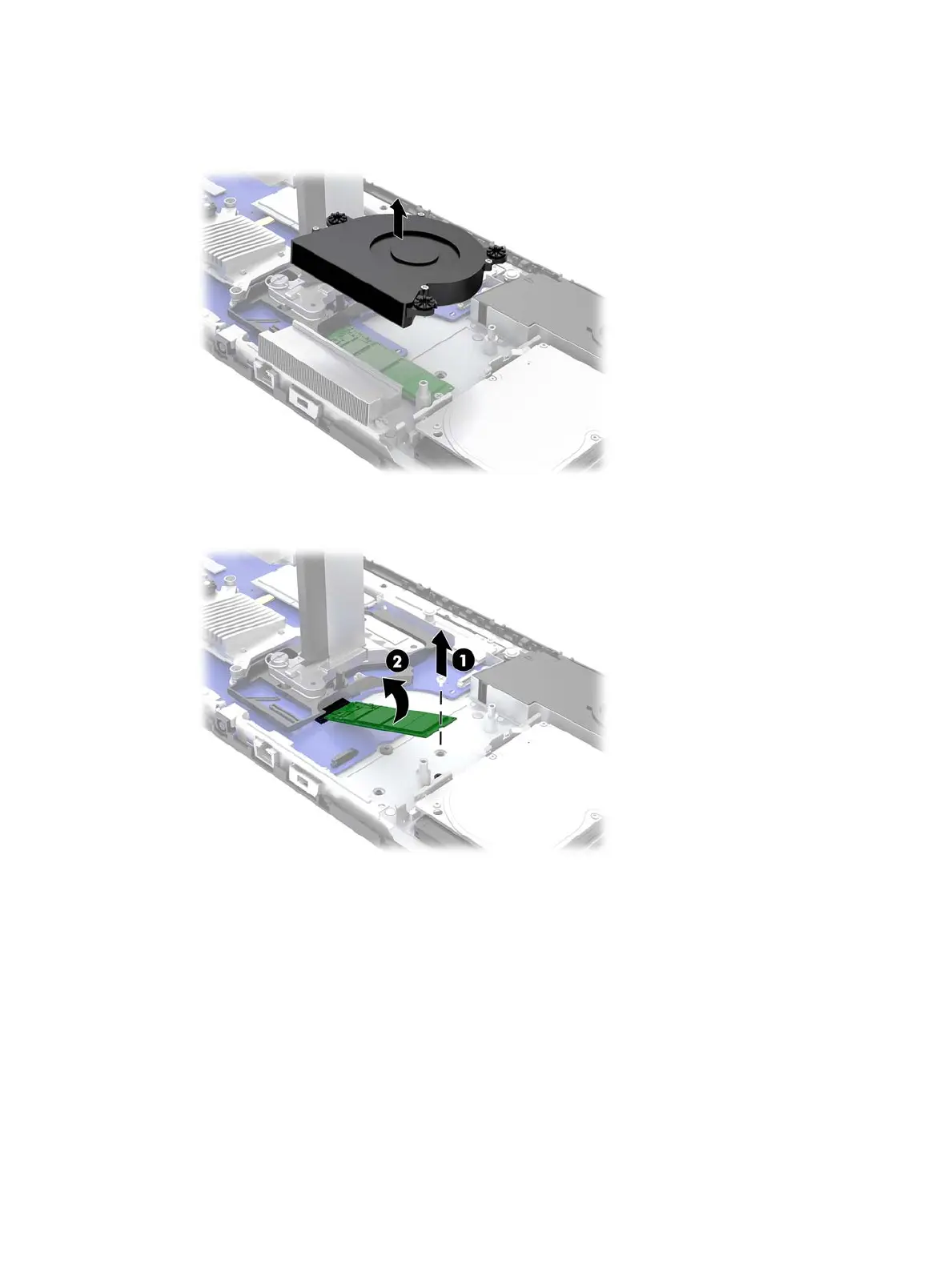

5. The M.2 SSD is located underneath the fan between the display head mount and hard drive bay. Pull the
fan straight up and o the posts on the system board to remove it. You do not need to disconnect the
fan cables.
6. To remove an M.2 SSD, remove the screw that secures the SSD to the system board (1), and then slide
the SSD out of the system board connector (2).
Removing or installing an M.2 SSD 23
