Left trim
To remove the left trim:
1. Prepare the computer for disassembly (see Preparing to disassemble the computer on page 31).
2. Remove the rear port cover (see Rear port cover on page 31).
3. Remove the stand (see Attaching and removing a stand on page 32).
4. Remove the access panel (see Access panel on page 37).
5. Remove the system board shield (see System board (EMI) shield on page 48).
6. Remove the top trim (see Top trim on page 45).

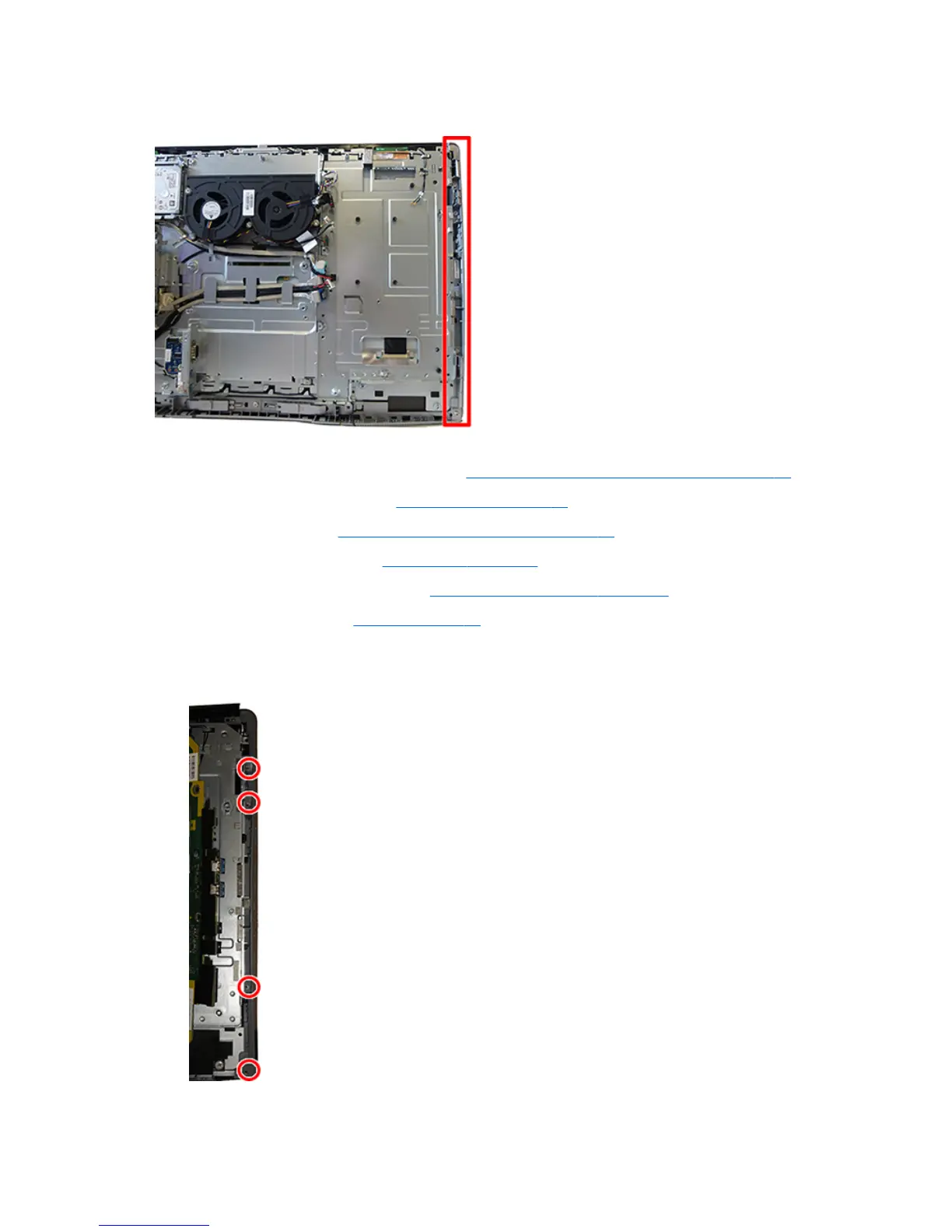

7. Remove the four Torx screws that secure the left trim to the computer.
8. Rotate the trim o the computer.
To install the left trim, reverse the removal procedures.
