EL-MF877-00 Page 13
Template Revision B
PSG instructions for this template are available at EL-MF877-01

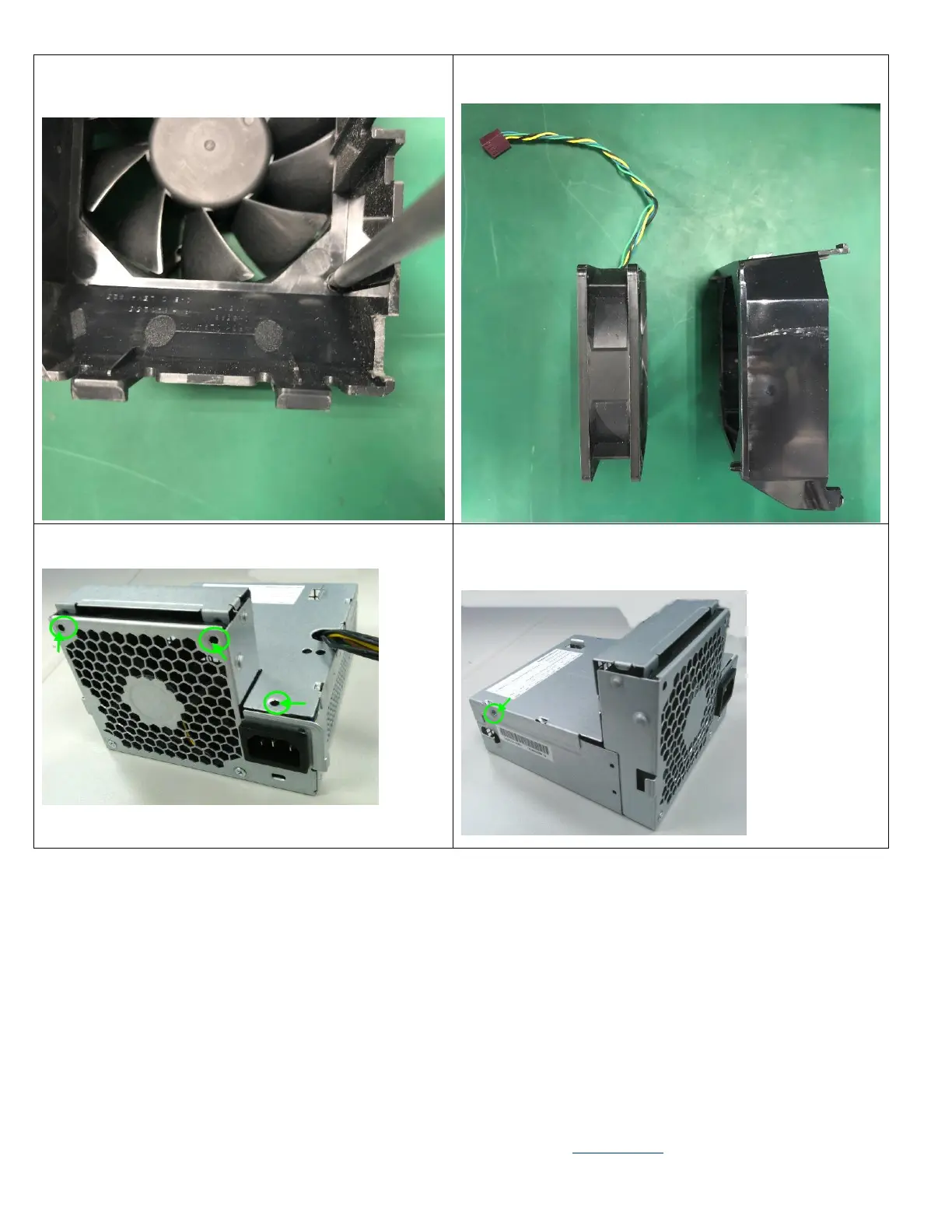

Figure 41 Use PH1 screwdriver to loose the screw of fan
and fan duct
Figure 42 separate the fan and fan duct
Figure 43 De-screw from the PSU's left side, use tool #1
Figure 44 De-screw from the PSU's right side, use tool #1
