HP Engage Flex Pro-C User Manual

EL-MF877-00 Page 14
Template Revision B
PSG instructions for this template are available at EL-MF877-01

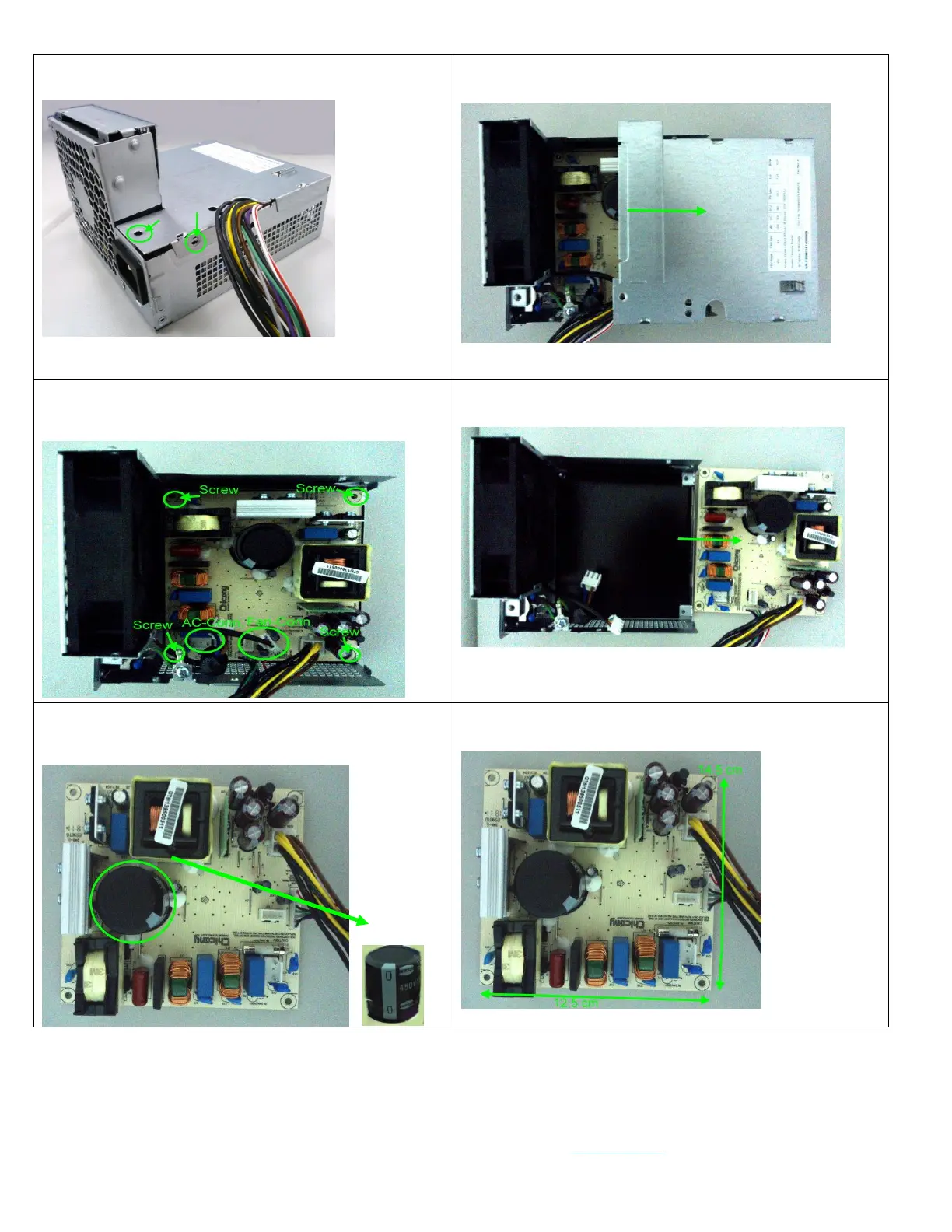

Figure 45 De-screw from the PSU's left side, use tool #1
Figure 46 Remove the case top
Figure 47 De-screw the PCBA from its 4 corners, use tool
#1, then pull-up the connector of AC & Fan wire
Figure 48 Remove the PCBA
Figure 49 Cut-off the biggest electrolyte-capacitor from
PCBA location C1 for treatment, use tool #2
Figure 50 Select the large printed circuit board for treatment

HP Engage Flex Pro-C Specifications

General

Graphics	Intel UHD Graphics 630
Operating System	Windows 10 Pro
Networking	Integrated Intel I219LM GbE
Wireless	Wi-Fi 6, Bluetooth 5.0
Processor	Intel Core i5 or i7
