EL-MF877-00 Page 6
Template Revision B
PSG instructions for this template are available at EL-MF877-01

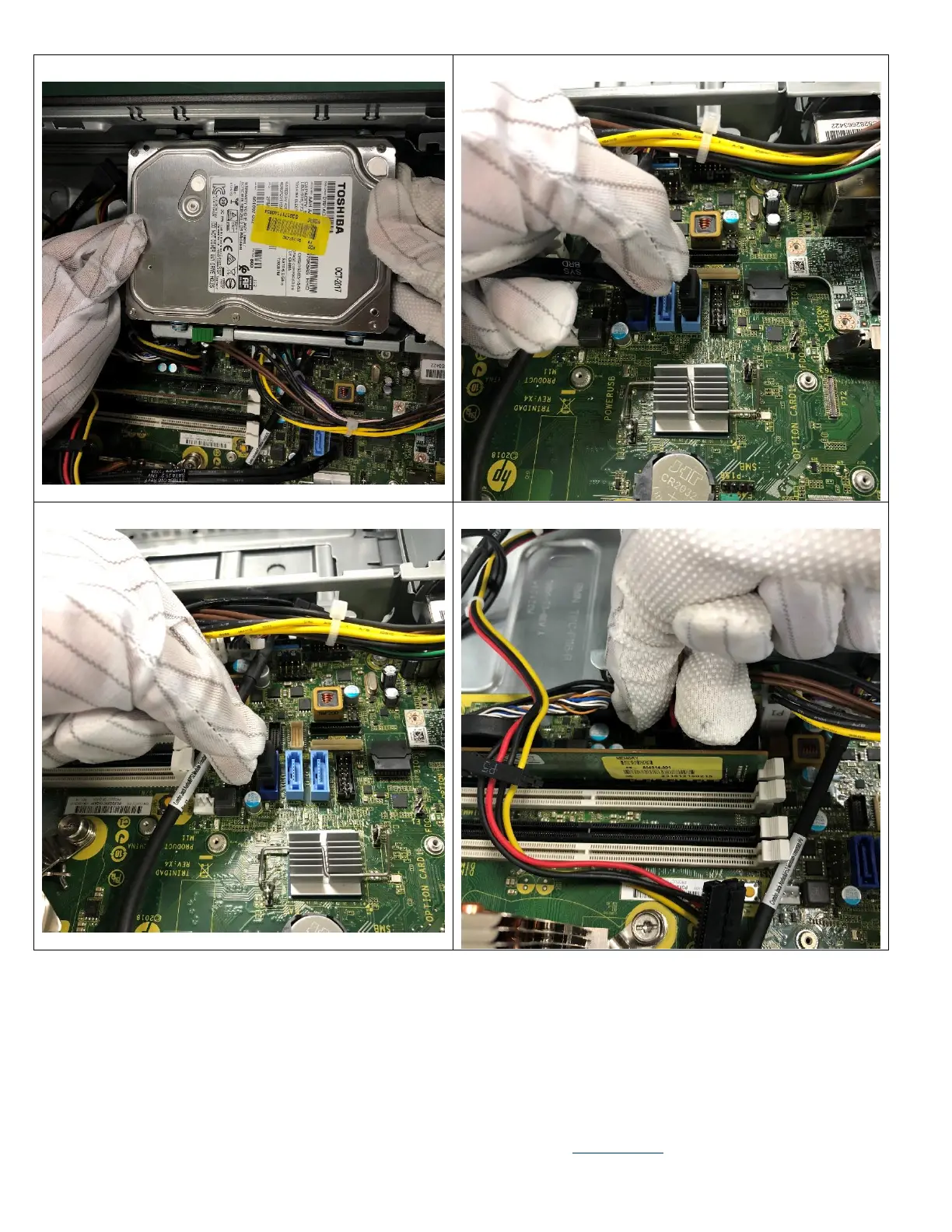

Figure 13 Remove HDD from the chassis
Figure 14 Disconnect ODD SATA data cable from MB
Figure 15 Disconnect HDD SATA data cable from MB
Figure 16 Disconnect SATA power cable from MB
