EL-MF877-00 Page 7
Template Revision B
PSG instructions for this template are available at EL-MF877-01

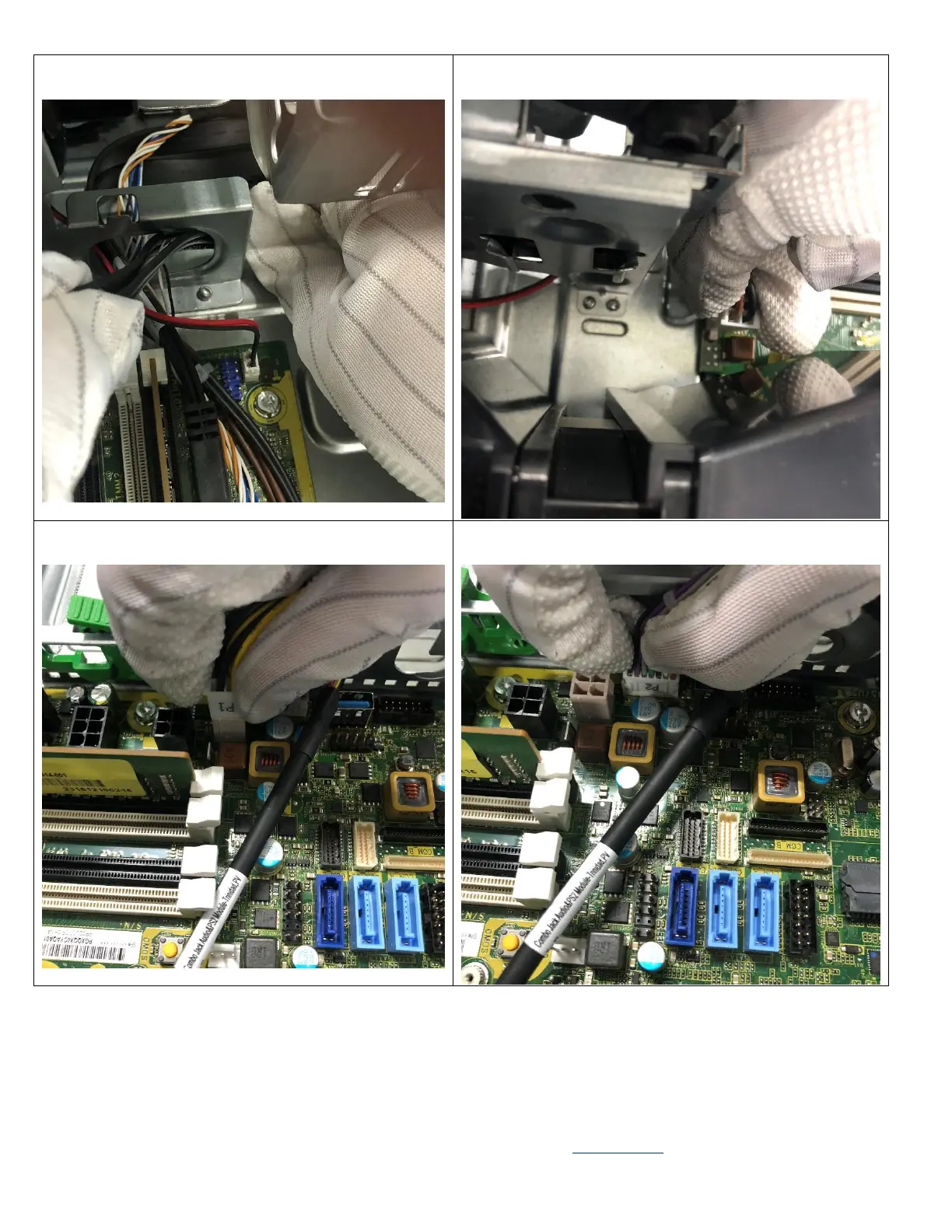

Figure 17 SATA cable go through the hole
Figure 18 Disconnect PSU P3 cable from MB
Figure 19 Disconnect PSU P1 cable from MB
Figure 20 Disconnect PSU P2 cable from MB
