HP Engage Flex Pro-C - Page 8

EL-MF877-00 Page 8
Template Revision B
PSG instructions for this template are available at EL-MF877-01

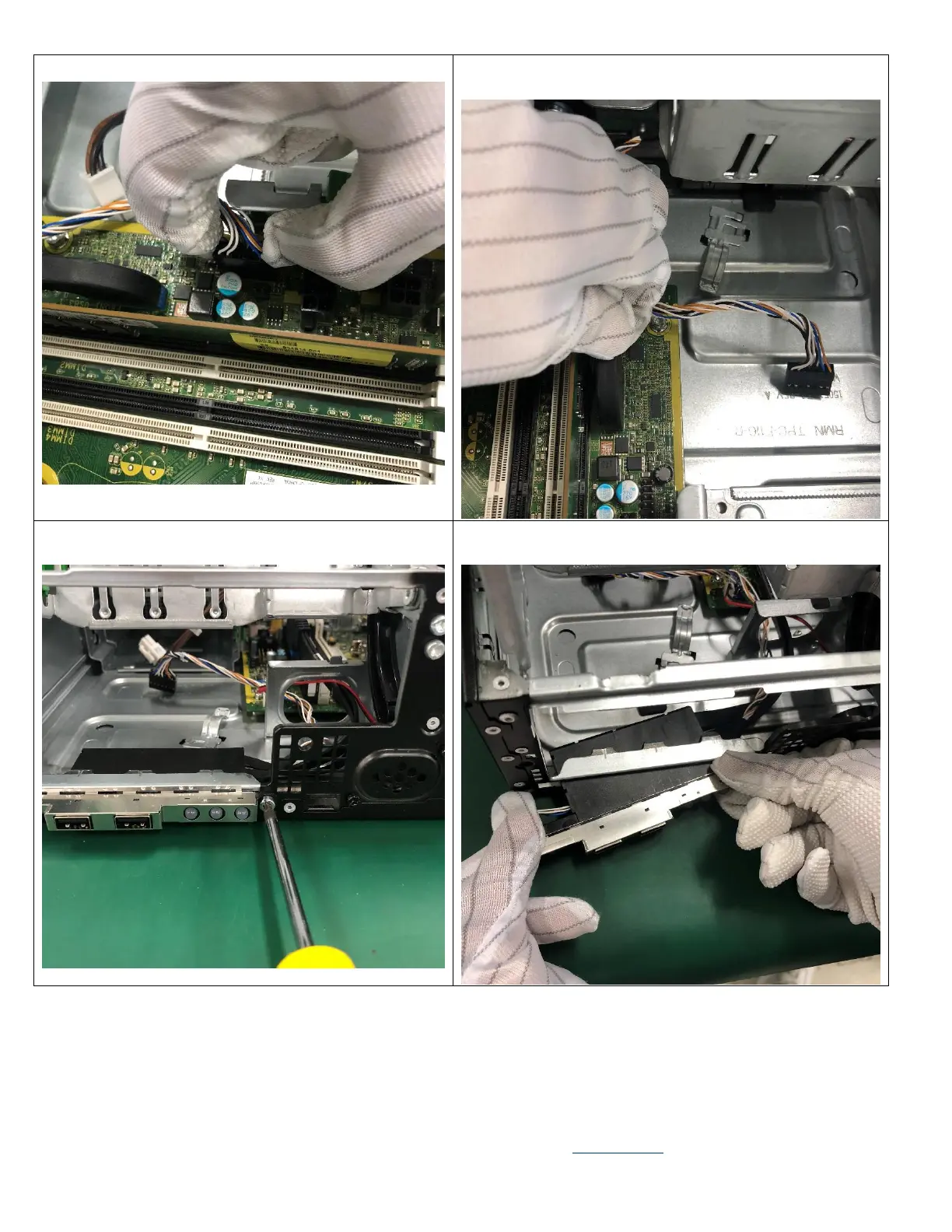

Figure 21 Disconnect Power switch & LED cable from MB
Figure 22 Disconnect USB3.1 cable from MB
Figure 23 Use T-15 screwdriver to loose the screw of FIO
Figure 24 Remove the FIO from the chassis
