HP Engage Flex pro - Page 10

EL-MF877-00 Page 10
Template Revision B
PSG instructions for this template are available at EL-MF877-01

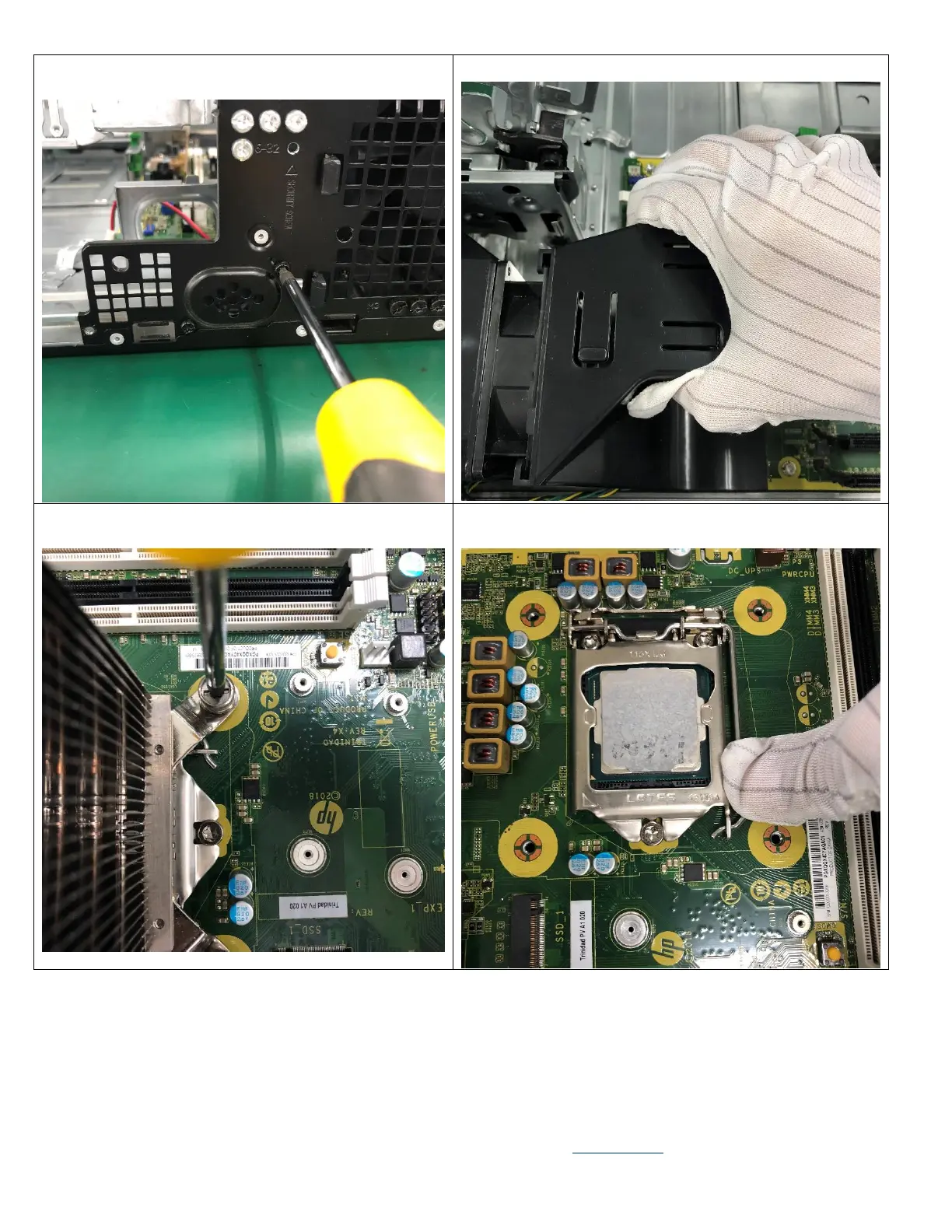

Figure 29 Use T-15 screwdriver to loose the screw of
speaker and remove it from chassis
Figure 30 Remove the fan duct from MB
Figure 31 Use T-15 screwdriver to loose the screw of
heatsink and remove it from MB
Figure 32 Press the latch
