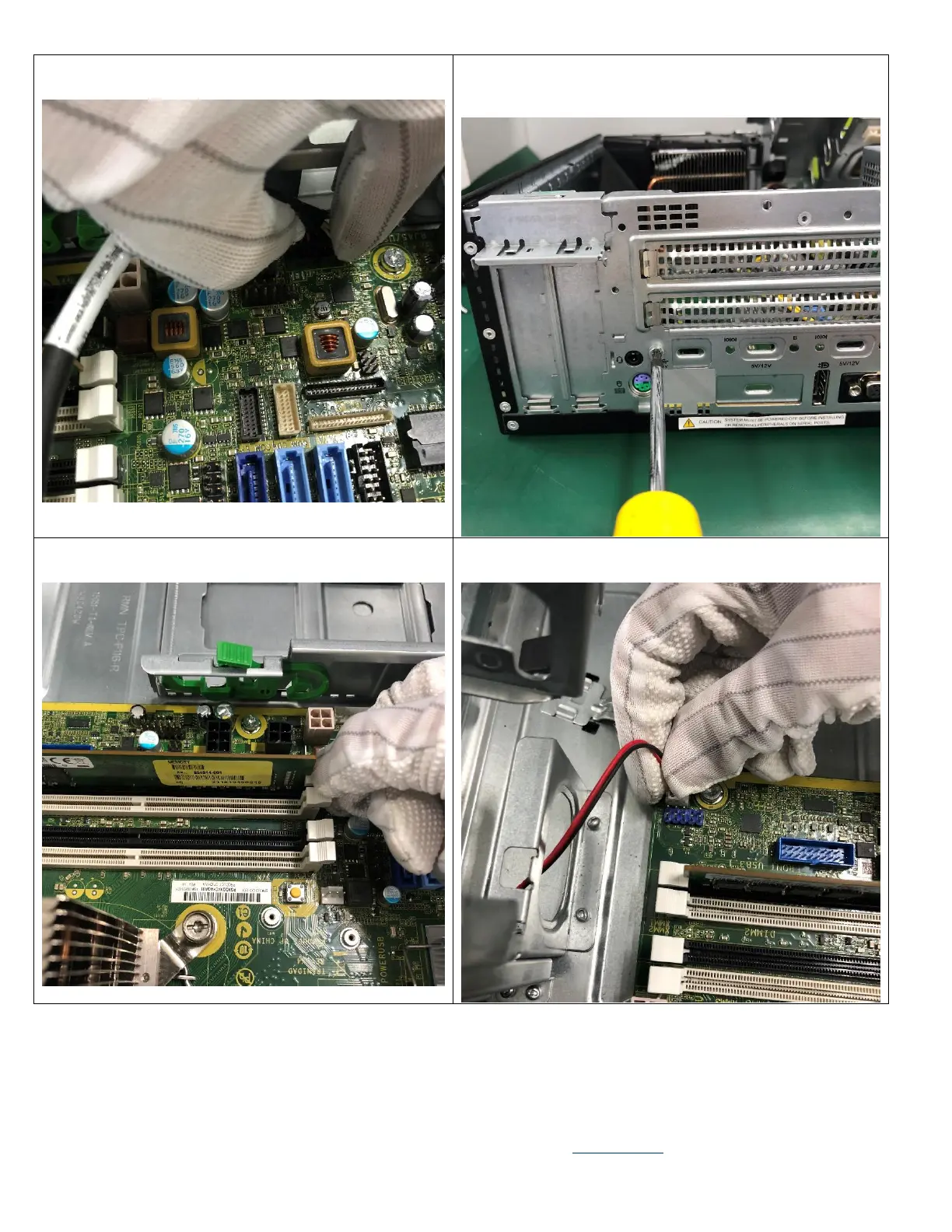

Figure 25 Disconnect the PS/2 & Audio cable from MB
Figure 26 Use T-15 screwdriver to loose the screw of PS/2 &
Audio and remove it from MB
Figure 27 Remove memory from MB
Figure 28 Disconnect speaker cable from MB
