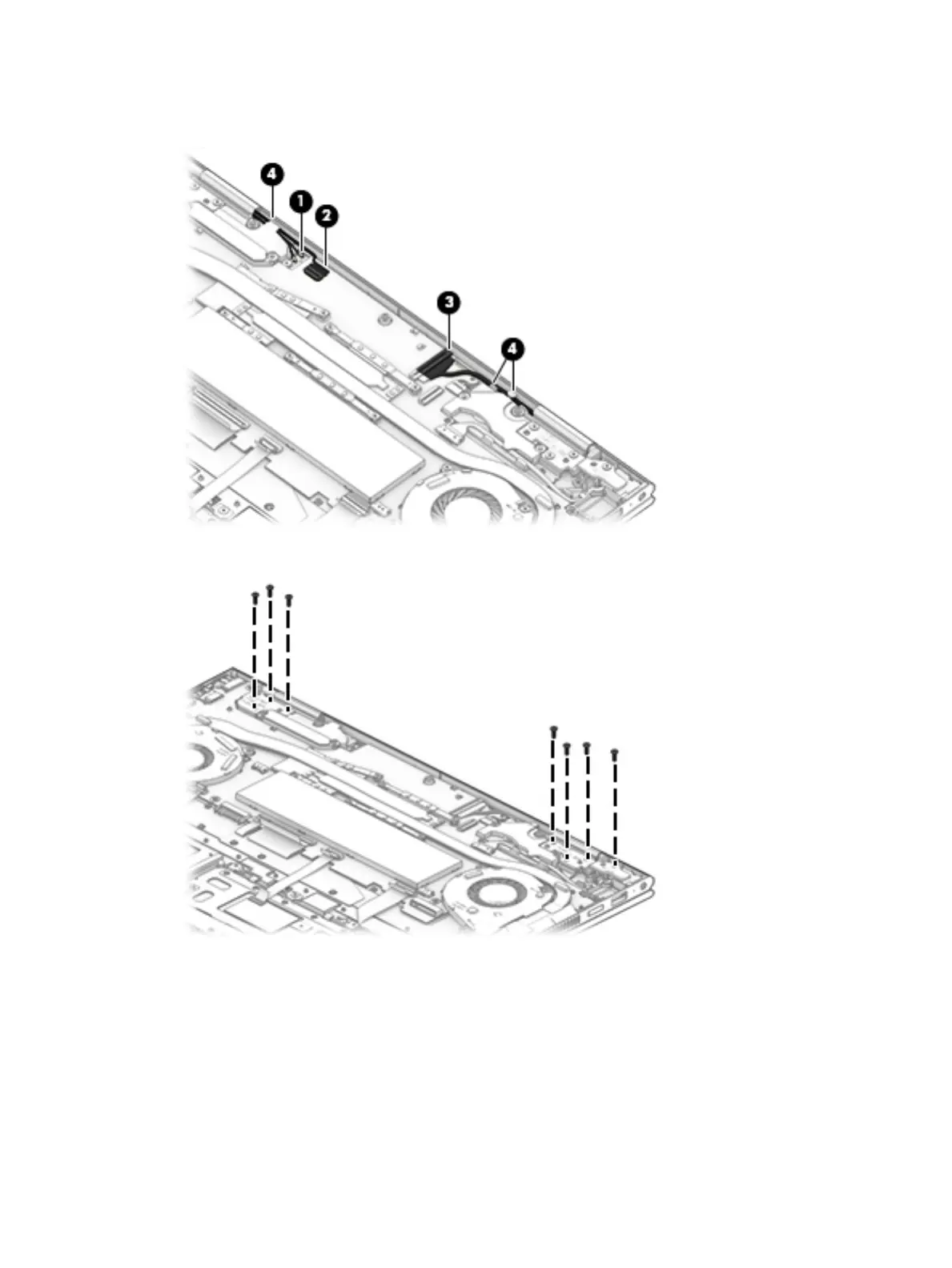

4. Release the webcam/microphone module cable and display panel cable from the retention clips (4) and
routing channel built into the keyboard/top cover.
5. Remove the seven Phillips M2.5×6.6 screws that secure the display assembly to the keyboard/top cover.
6. Swing the keyboard/top cover (1) up and away from the display assembly.
52 Chapter 5 Removal and replacement procedures
