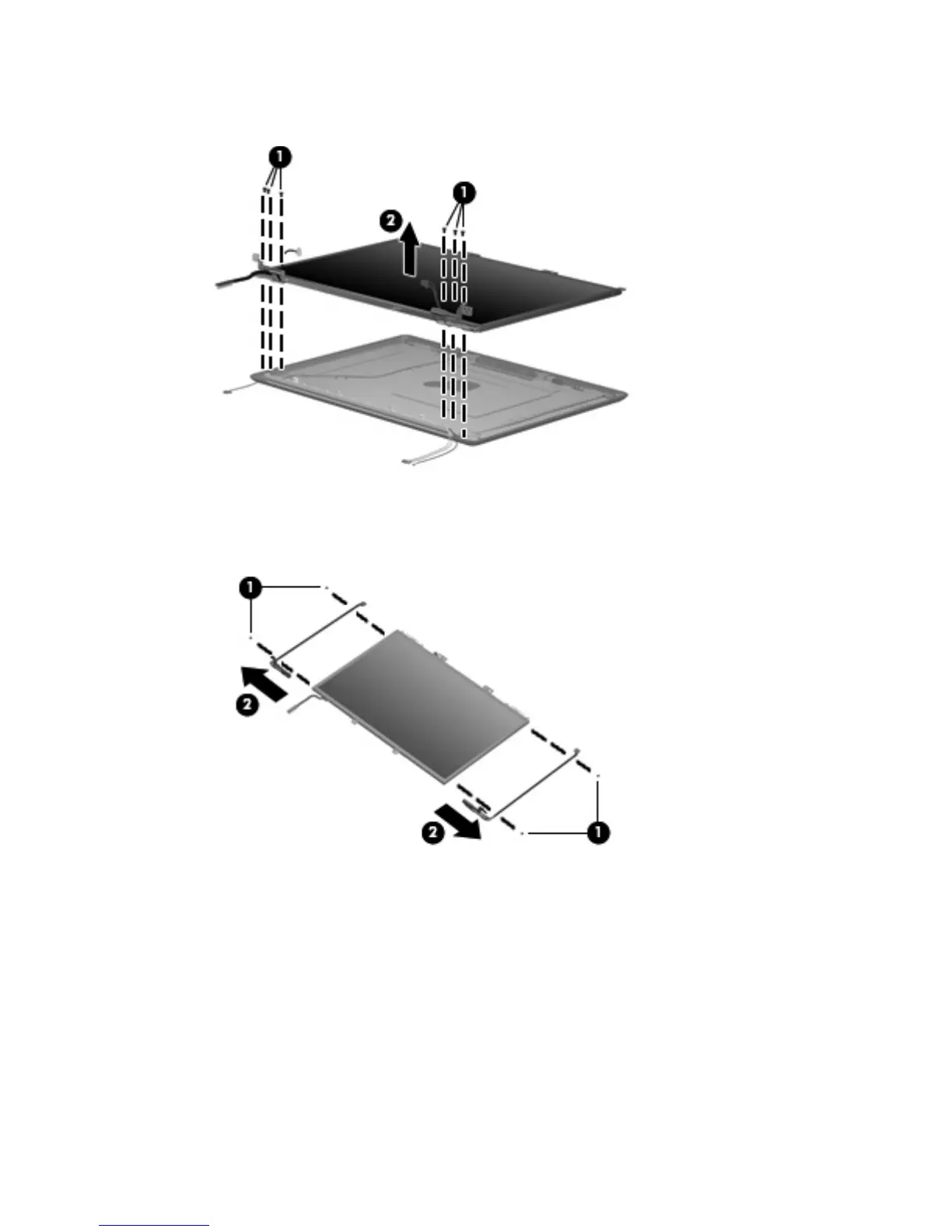

12. Remove the display panel (2) from the display enclosure. The display panel is available using spare
part number 462427-001.
13. Remove the four Phillips PM2.0×4.0 screws (1) that secure the hinges to the display panel.
14. Remove the display hinges (2) from the display panel. The display hinges are available using spare
part number 433288-001.
15.
If it is necessary to replace the wireless antenna transceivers and cables, remove the two Phillips
PM2.0×4.0 screws (1) that secure the transceivers to the display enclosure.
16. Release the tabs built into the display enclosure shielding (2) that secure the wireless antenna cables.
60 Chapter 4 Removal and replacement procedures
