7–8 Maintenance and Service Guide

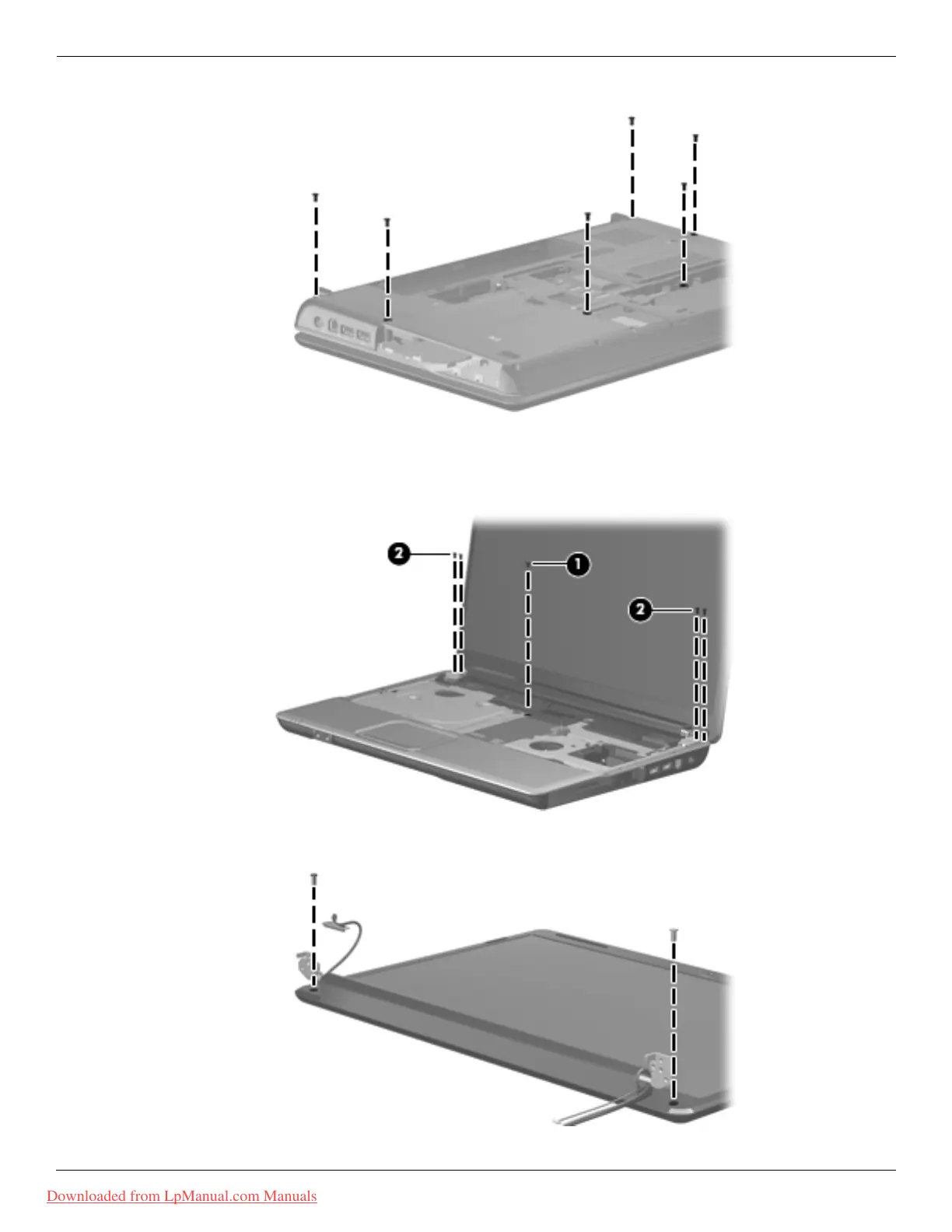

Screw listing
Where used: 6 screws that secure the keyboard cover to the base enclosure
Where used:
1 One screw that secures the keyboard cover to the base enclosure
2 Four screws that secure the display assembly to the base enclosure
Where used: 2 screws that secure the display bezel to the display enclosure
